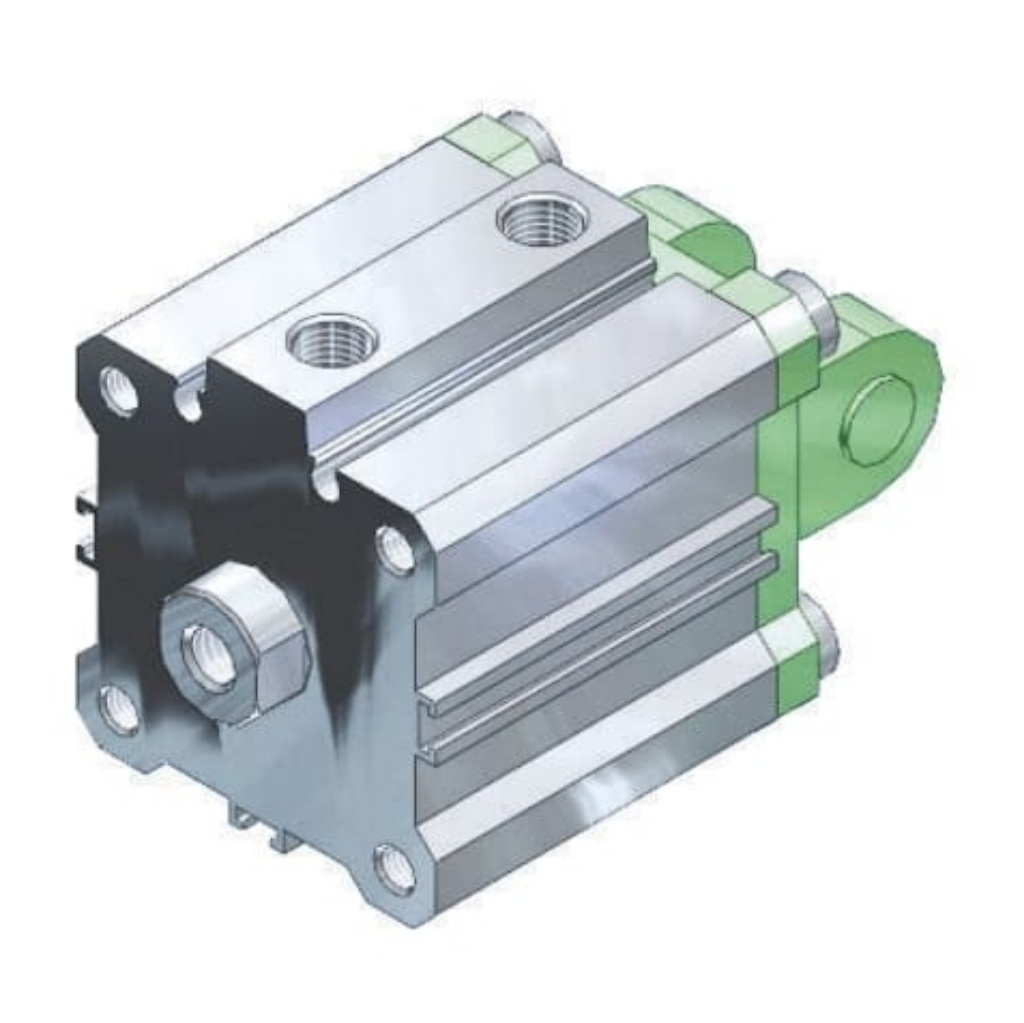

Picture of Pneumatic Compact Cylinder - 25mm Bore, 10mm Stroke, CQS Series, Double Acting, SMC, CDQSB25-10D

Pneumatic Compact Cylinder - 25mm Bore, 10mm Stroke, CQS Series, Double Acting, SMC, CDQSB25-10D

CQS Cylinders

The CQS Series of Compact Cylinders is available for those small bore cylinder applications. Both switch capable and non-switch capable body styles are the same.

Space and weight saving
Magnetic or non-magnetic pistons available
Proof pressure 15 bar
Internal thread rod ends
Nitrile seals
Clean Lines
Flush fitting auto switch as standard
Variety of switches and a variety of lead wire lengths

CQS 12-25 mm Diameter
Manufacturer: SMC
SKU: CDQSB25-10D
$116.27
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke10mm
Bore25mm
ActionDouble
Manufacturer SeriesCQS
Length37.5mm
Dimensions37.5 x 40 x 40mm
Width40mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Height40mm
Weight107g
Maximum Operating Temperature+70°C
Minimum Operating Temperature-10°C
