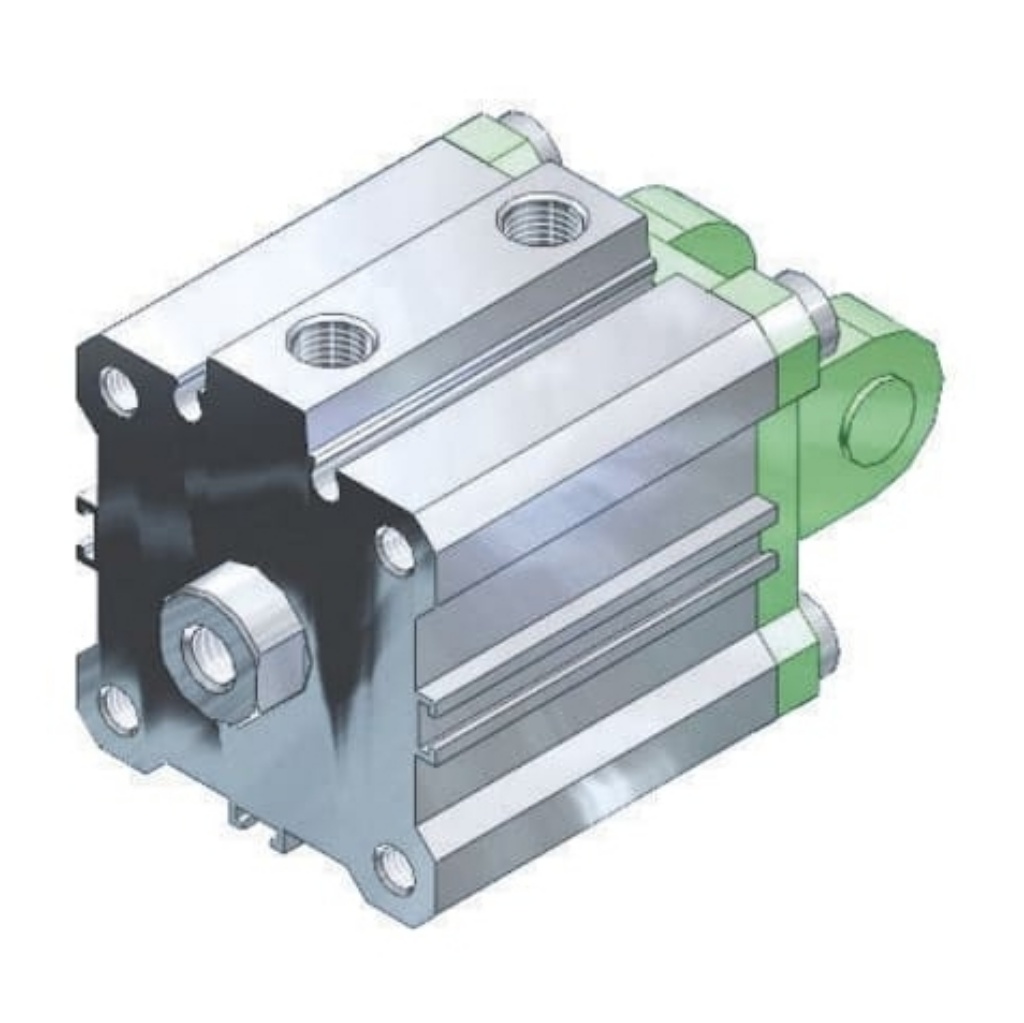

Picture of Pneumatic Compact Cylinder - 20mm Bore, 30mm Stroke, CQS Series, Double Acting, SMC, CDQSB20-30D

Pneumatic Compact Cylinder - 20mm Bore, 30mm Stroke, CQS Series, Double Acting, SMC, CDQSB20-30D

CQS Cylinders

The CQS Series of Compact Cylinders is available for those small bore cylinder applications. Both switch capable and non-switch capable body styles are the same.

Space and weight saving
Magnetic or non-magnetic pistons available
Proof pressure 15 bar
Internal thread rod ends
Nitrile seals
Clean Lines
Flush fitting auto switch as standard
Variety of switches and a variety of lead wire lengths

CQS 12-25 mm Diameter
Manufacturer: SMC
SKU: CDQSB20-30D
$95.10
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Stroke30mm
Bore20mm
ActionDouble
Manufacturer SeriesCQS
Length54mm
Dimensions54 x 36 x 36mm
Width36mm
Absolute Maximum Pressure1.5MPa
Maximum Operating Pressure1 MPa
Height36mm
Maximum Operating Temperature+70°C
Minimum Operating Temperature-10°C
Weight127g
