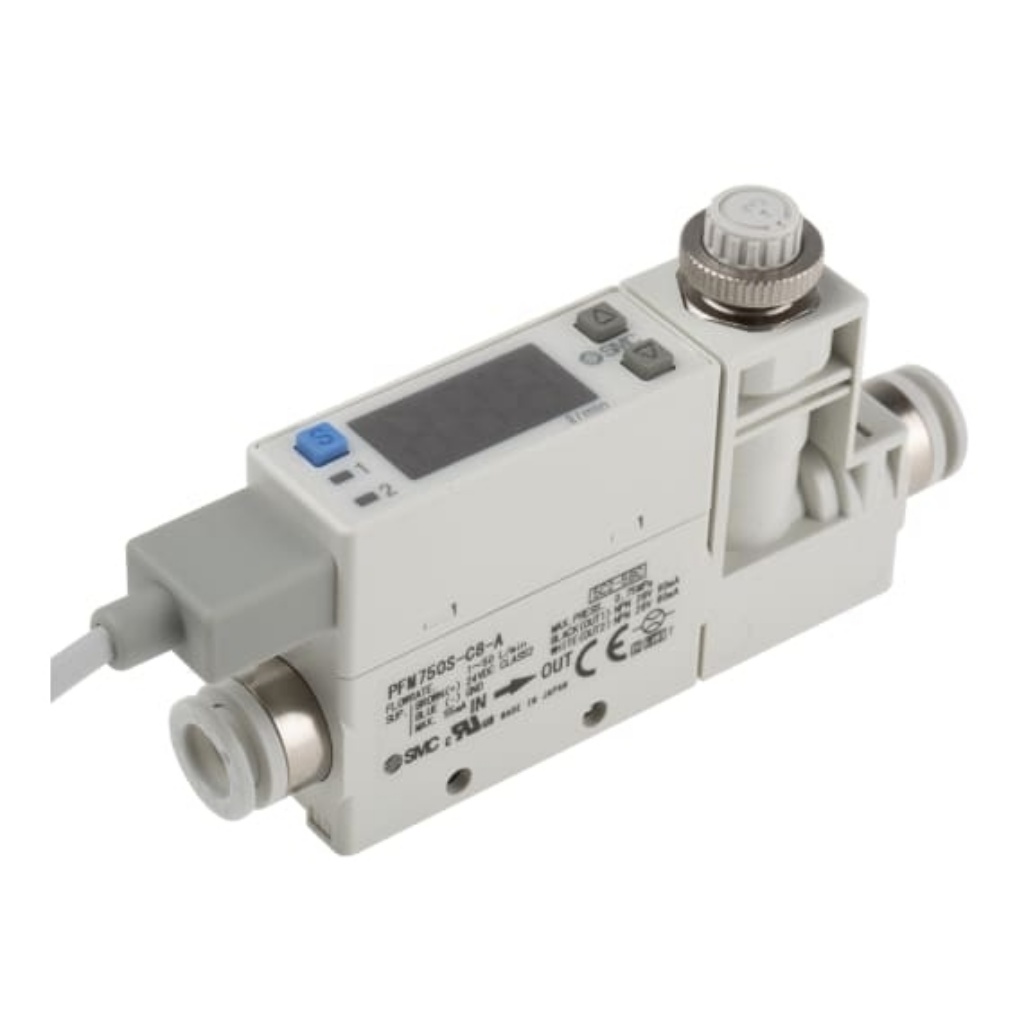

Picture of PFM Series Integrated Display Flow Switch for Dry Air, Gas, 1 L/min Min, 50 L/min Max, SMC, PFM750S-C8-A-W
Picture of PFM Series Integrated Display Flow Switch for Dry Air, Gas, 1 L/min Min, 50 L/min Max, SMC, PFM750S-C8-A-W
Picture of PFM Series Integrated Display Flow Switch for Dry Air, Gas, 1 L/min Min, 50 L/min Max, SMC, PFM750S-C8-A-W
Picture of PFM Series Integrated Display Flow Switch for Dry Air, Gas, 1 L/min Min, 50 L/min Max, SMC, PFM750S-C8-A-W

PFM Series Integrated Display Flow Switch for Dry Air, Gas, 1 L/min Min, 50 L/min Max, SMC, PFM750S-C8-A-W

Digital Flow Switch - PFM7 Series

The PFM series from SMC are dual flow switches designed to detect microchip component adsorption in vacuum, congestion in filters and nozzles. Compact and light weight design, suitable for use with carbon dioxide, air, nitrogen or argon.

Flow rate range: 10, 25, 50,100 l/min
Minimum unit setting: 0.01 l/min
Repeatability: ±1%F.S. or less
Grease-free
Flow adjustment valve is integrated - reduced piping and space saving
Response time can be set
Manufacturer: SMC
SKU: PFM750S-C8-A-W
$557.56
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Media MonitoredDry Air, Gas
Device TypeIntegrated Display
Minimum Flow Rate1 L/min
Maximum Flow Rate50 L/min
Supply Voltage24 V dc
Pipe Diameter Range8 mm
Connection TypeOne-Touch Fitting
Maximum Pressure750kPa
MaterialPBT
Minimum Media Temperature0 °C
Maximum Media Temperature+50°C
Minimum Operating Temperature0°C
SeriesPFM
Maximum Operating Temperature+50°C
