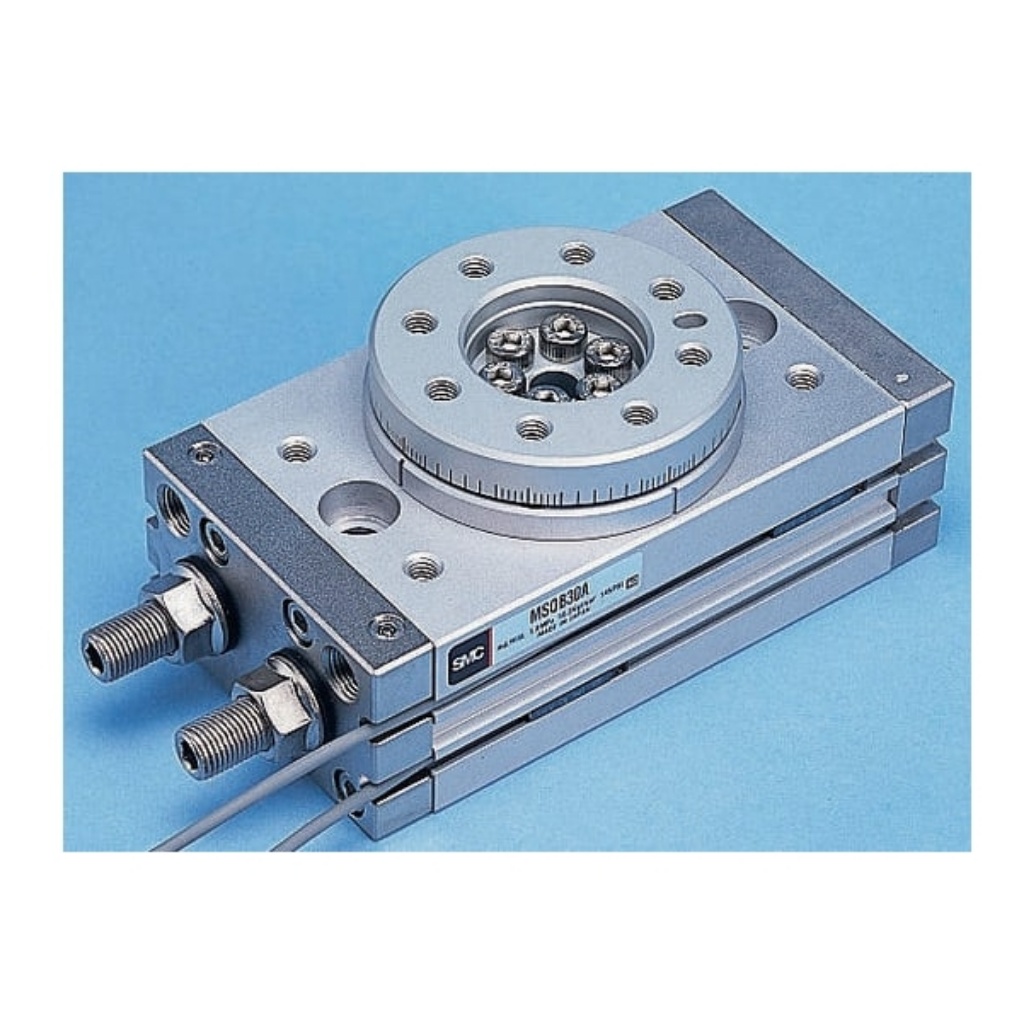

Picture of MSQ Series Pneumatic Rotary Actuator, 190° Rotary Angle, 32mm Bore, SMC, EMSQB100A

MSQ Series Pneumatic Rotary Actuator, 190° Rotary Angle, 32mm Bore, SMC, EMSQB100A

SMC MSQ Series Actuator

The MSQ series of compact rotary tables are ideal for material transfer applications. The series incorporate a load bearing and mounting face with a rack-and-pinion style rotary actuator and also have auto switch capability.There are seven sizes are 10, 20, 30, 50, 70, 100 and 200 with rotational adjustments from 0-190 degrees.

Operating range of 0-190° by angle adjusting screw
Double rack and single pinion construction eliminates backlash
Smooth rotary motion, rubber
Auto Switch available separately
Various cushioning types available
Manufacturer: SMC
SKU: EMSQB100A
$2,206.53
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Rotary Angle190°
Bore32mm
Manufacturer SeriesMSQ
Absolute Maximum Pressure1MPa
Cushioning TypeRubber
Port ConnectionM5 x 0.8, Rc 1/8
Weight4.1kg
