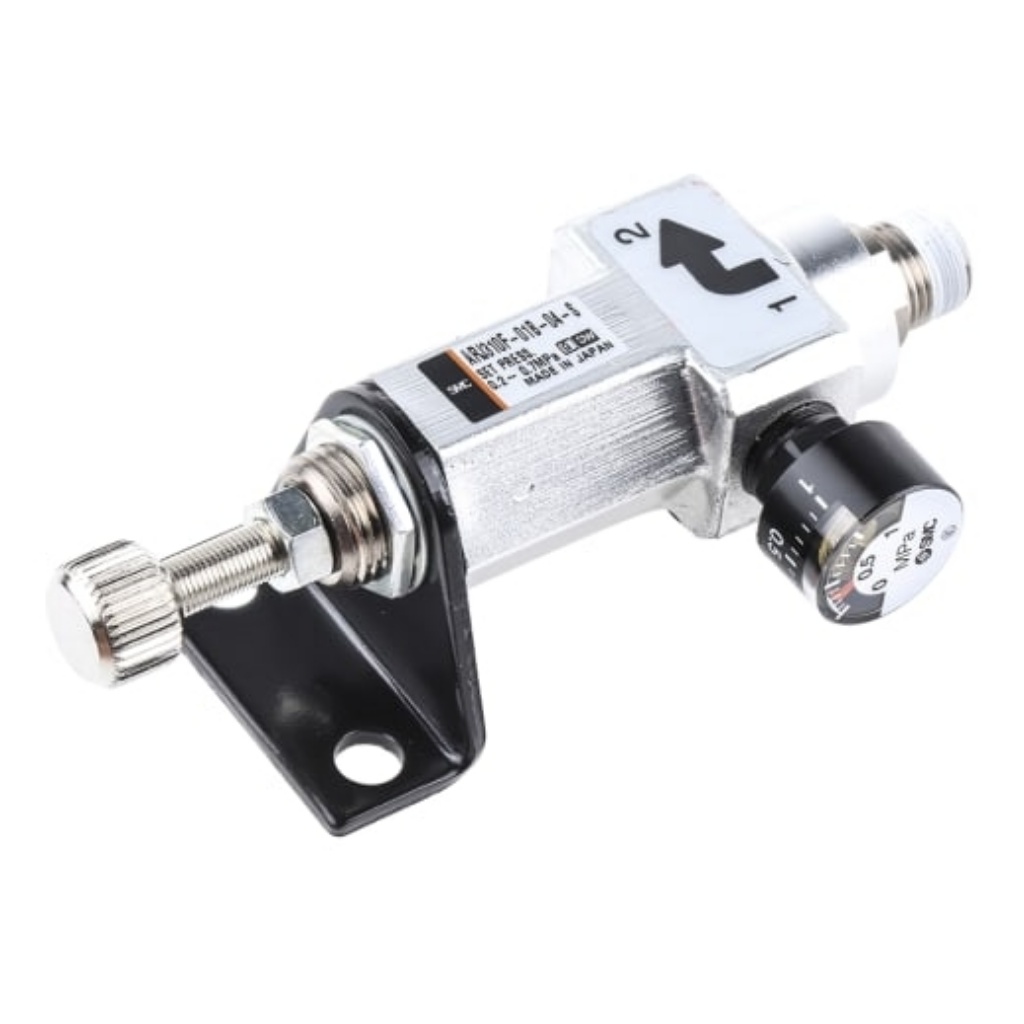

M5 x 0.8, R 1/8 Pneumatic Regulator - 0.2MPa to 0.7MPa, 1/8 in, M5 x 0.8, 0.8MPa max. input, SMC, ARJ310F-01-04-S

Compact ARJ310 Series

Relieving, piston type pressure regulator
Compact, lightweight construction
Panel mountable
Threaded sealant
Optional pressure gauge available separately (see G15-10-01)
Manufacturer: SMC
SKU: ARJ310F-01-04-S
$73.92
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Port ConnectionM5 x 0.8, R 1/8
Maximum Outlet Pressure0.7MPa
Minimum Outlet Pressure0.2MPa
Maximum Input Pressure0.8MPa
Manufacturer SeriesARJ310
Pressure Gauge Port SizeRc 1/8
Port Connection Thread Size1/8 in, M5 x 0.8
Pressure Gauge Port Thread Size1/8 in
Integral Check ValveWithout Check Valve
Port Connection Thread StandardMetric, R
Minimum Operating Temperature-5°C
Maximum Operating Temperature+60°C
Pressure Gauge Port Thread StandardRc
