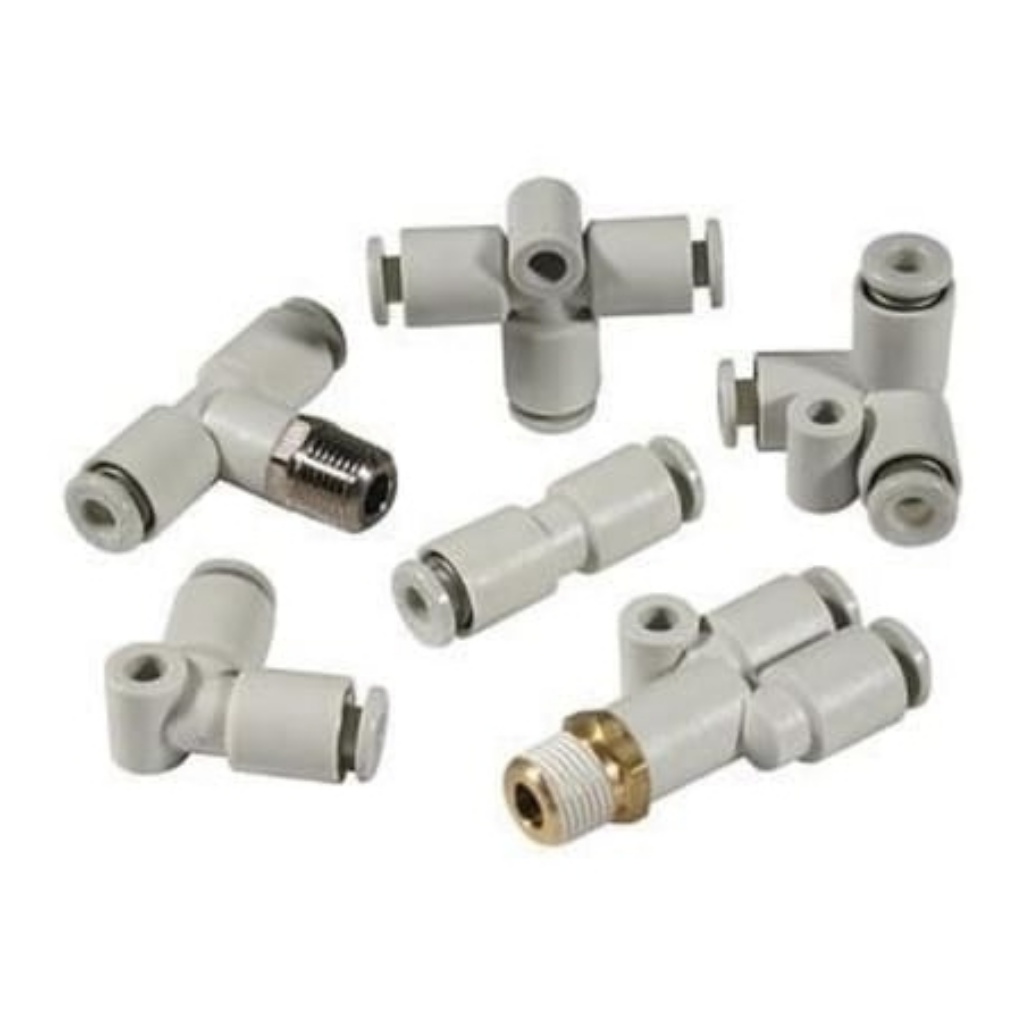

Picture of KQ2 Series Straight Threaded Adaptor, R 1/4 Female to Push In 6 mm, Threaded-to-Tube Connection Style, SMC, KQ2F06-02A(10)

KQ2 Series Straight Threaded Adaptor, R 1/4 Female to Push In 6 mm, Threaded-to-Tube Connection Style, SMC, KQ2F06-02A(10)

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing

Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0MPa
Manufacturer: SMC
SKU: KQ2F06-02A(10)
$70.31
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Connector AR 1/4 Female
Connector BPush In 6 mm
Pneumatic Fitting TypeStraight Threaded Adaptor
Connection StyleThreaded-to-Tube
Threaded ConnectionR 1/4 Female
Manufacturer SeriesKQ2
Maximum Operating Temperature+60°C
Minimum Operating Temperature-5°C
Body MaterialPBT
Maximum Operating Pressure1 MPa
Mounting TypeInline
Standards MetJIS B0203
