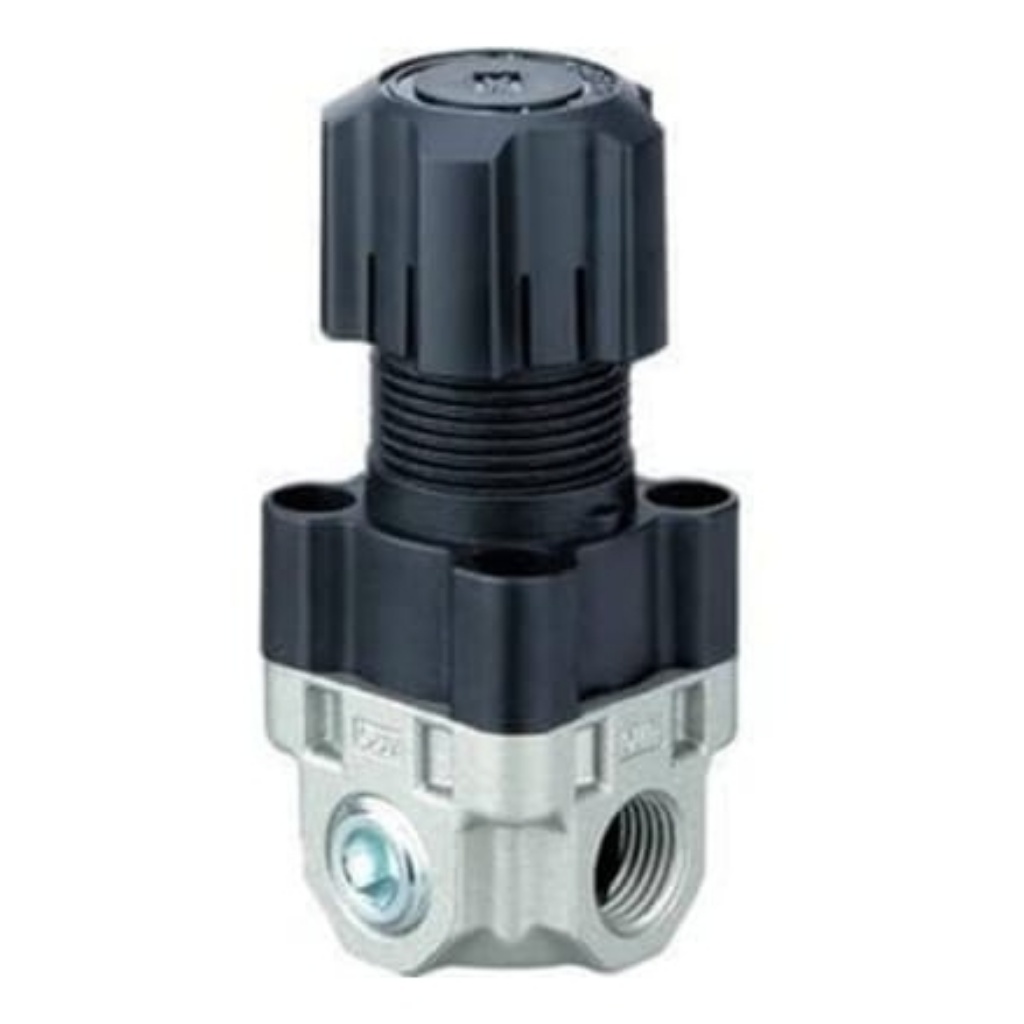

Picture of G 1/8 Pneumatic Regulator - 0.5bar to 8.5bar, 20bar max. input, SMC, ARX20-F01B

G 1/8 Pneumatic Regulator - 0.5bar to 8.5bar, 20bar max. input, SMC, ARX20-F01B

The SMC ARX20 piston type regulator is compatible with a primary supply pressure of 2.0MPa and is ideal for pressure adjustment of air blowing applications. The ARX has a compact design with a width of 35mm and an overall length of 80mm. The piston operated design ensures long operating life. The ARX has an easy-to-operate adjustment handle.

Maximum operating pressure 2.0 Mpa
Weight 110 g
Ambient and fluid temperature –5 to 60°C (No freezing)
Manufacturer: SMC
SKU: ARX20-F01B
$46.43
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Port ConnectionG 1/8
Maximum Outlet Pressure8.5bar
Minimum Outlet Pressure0.5bar
Maximum Input Pressure20bar
Manufacturer SeriesARX20
Typical Flow Rate60L/min
