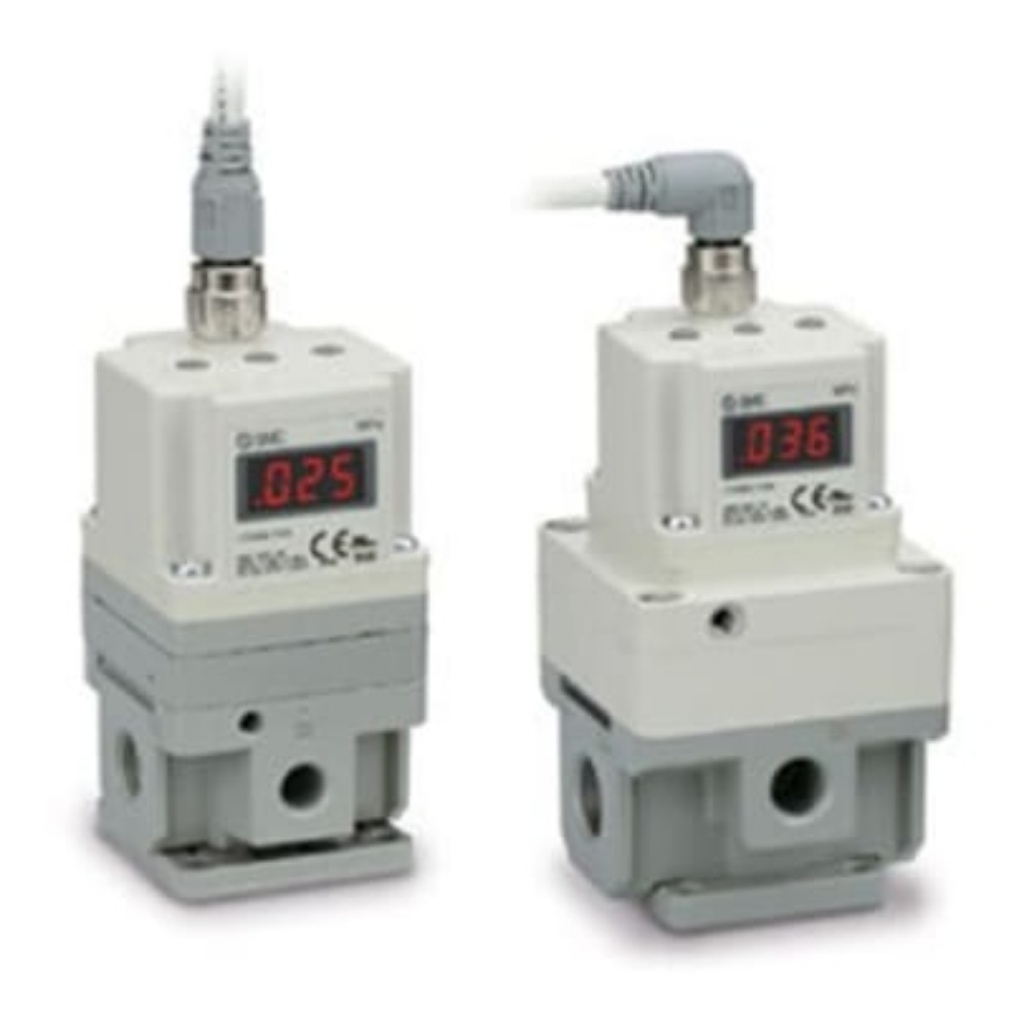

Picture of G 1/4 Pneumatic Regulator - 0.5bar to 9bar, 10bar max. input, SMC, ITV2050-31F2N3

G 1/4 Pneumatic Regulator - 0.5bar to 9bar, 10bar max. input, SMC, ITV2050-31F2N3

The SMC series ITV electro-pneumatic and electronic vacuum regulators control air/vacuum pressure sleeplessly in proportion to an electric signal. They are light weight in design with a bright and easy to read LED display. The monitor output is available either as analog output or switch output. The ITV series is IP65 equivalent.

Controls air pressure in proportion to an electric signal.
Available in MPa, Kgf/cm², bar, PSI, and kPa units.
Pressure range of 0.005 to 0.9MPa.
Available port sizes 1/4 and 1/8.
Mounting bracket option
Manufacturer: SMC
SKU: ITV2050-31F2N3
$1,314.21
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Port ConnectionG 1/4
Maximum Outlet Pressure9bar
Minimum Outlet Pressure0.5bar
Maximum Input Pressure10bar
Manufacturer SeriesITV2050
Typical Flow Rate1500L/min
Only registered users can write reviews
