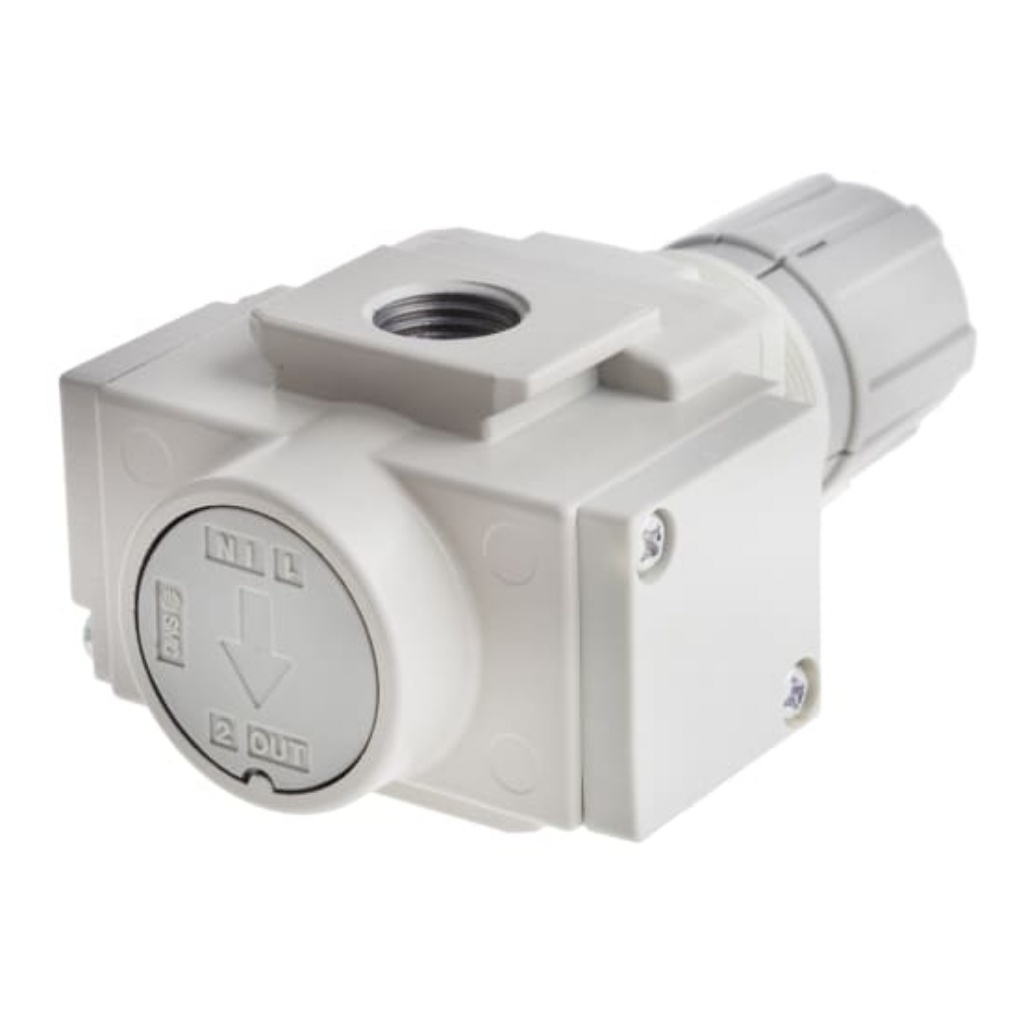

Picture of G 1/4 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/4in, 1MPa max. input, SMC, AR20K-F02-B
Picture of G 1/4 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/4in, 1MPa max. input, SMC, AR20K-F02-B
Picture of G 1/4 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/4in, 1MPa max. input, SMC, AR20K-F02-B

G 1/4 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/4in, 1MPa max. input, SMC, AR20K-F02-B

SMC Air Regulator AR20-B - AR40-B

SMC’s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted.

Note

An integral Pressure Gauge is shown on the picture for reference only. It is not supplied as a part of the set and has to be bought separately.
Manufacturer: SMC
SKU: AR20K-F02-B
$70.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Port ConnectionG 1/4
Maximum Outlet Pressure0.85MPa
Minimum Outlet Pressure0.05MPa
Maximum Input Pressure1MPa
Port Connection Thread Size1/4in
Maximum Flow Rate20L/min
Integral Check ValveYes
Port Connection Thread StandardG
Minimum Operating Temperature-5°C
Maximum Operating Temperature60°C
Overall Length40mm
Overall Dimensions40 x 57 x 94mm
Proof Pressure1.5MPa
Overall Width57mm
Overall Height94mm
