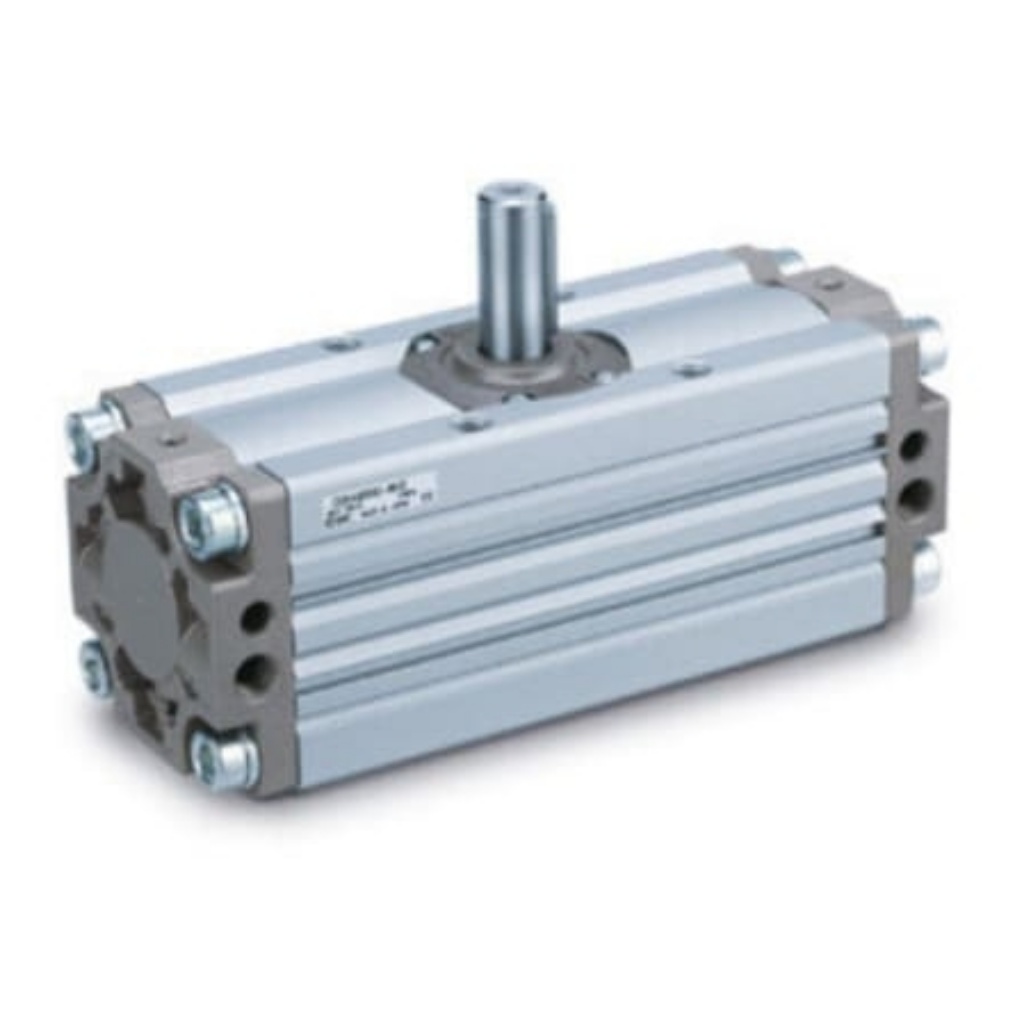

Picture of CRA1 Series 10 bar Single Action Rotary Actuator, 180° Rotary Angle, 63mm Bore, SMC, CDRA1BW63TF-180Z

CRA1 Series 10 bar Single Action Rotary Actuator, 180° Rotary Angle, 63mm Bore, SMC, CDRA1BW63TF-180Z

The SMC rotary actuator offers compact auto switches which can be mounted from the front with width reduction by 14mm. Bore sizes on standard model are 30, 50, 63, 80, and 100mm. Units may be ordered auto-switch capable and with replaceable cushions. Many

Easy adjustment of cushion valve
Cushion seal is replaceable
Manufacturer: SMC
SKU: CDRA1BW63TF-180Z
$779.41
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Rotary Angle180°
ActionSingle
Bore63mm
Manufacturer SeriesCRA1
Maximum Input Pressure10bar
Maximum Operating Pressure10 bar
