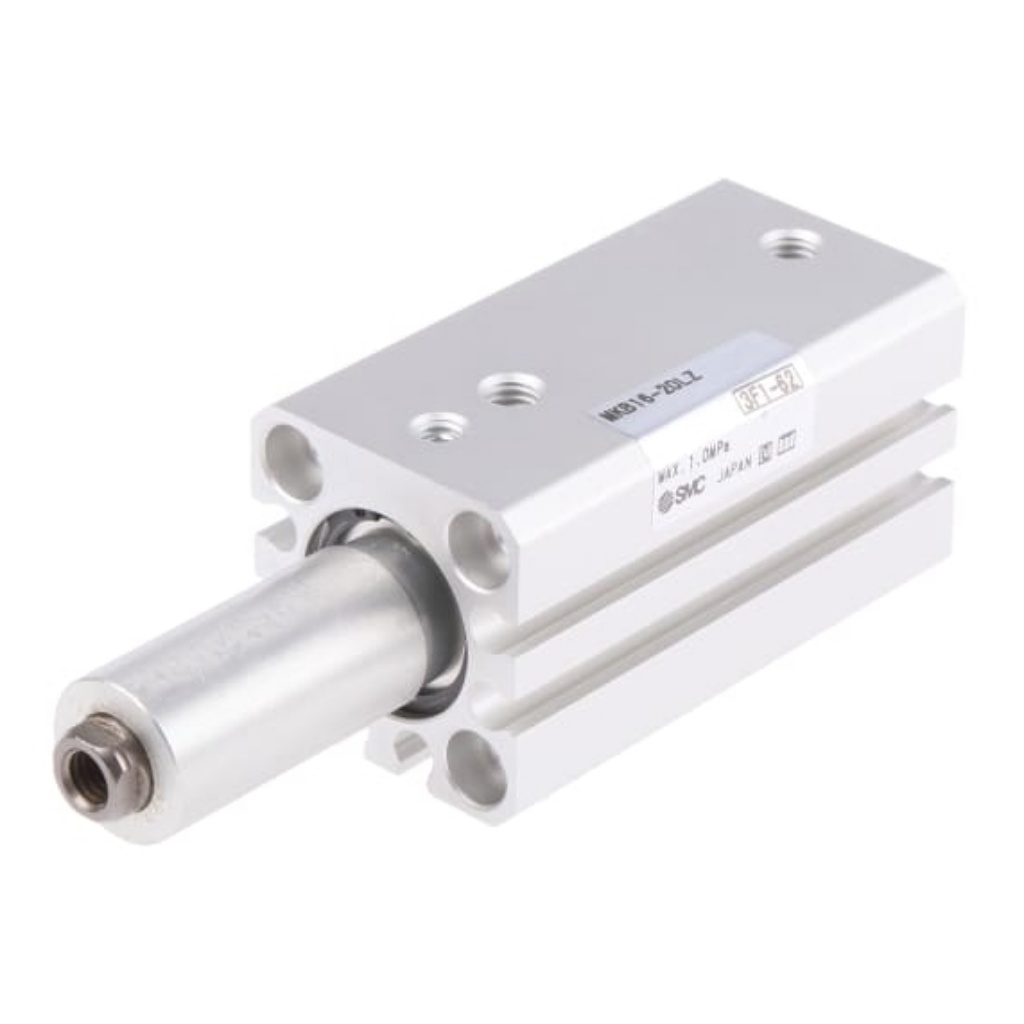

Picture of Clamping Actuator , SMC, MKB16-20LZ
Picture of Clamping Actuator , SMC, MKB16-20LZ
Picture of Clamping Actuator , SMC, MKB16-20LZ

Clamping Actuator , SMC, MKB16-20LZ

Rotary Clamp Cylinder

Double-acting rotary clamp actuators, operating on lubricated, filtered compressed air. The piston rod is rotated through 90° as it extends or retracts, and may be used for clamping by using the optional arm. All cylinders have a 20mm stroke.

Pressure range: 1 - 10bar, 15bar proof pressure
Temperature range: -10°C to +70°C
Compact design
Strong clamping force
End of stroke buffer
Left or right rotation
Autoswitch sensors available
Manufacturer: SMC
SKU: MKB16-20LZ
$298.57
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Clamp Stroke20mm
Bore16mm
Maximum Operating Pressure10 MPa
Manufacturer SeriesMK
Rotary Angle90°
Absolute Maximum Pressure10MPa
Cushioning TypeRubber
Port ConnectionM5 x 0.8
Weight123g
