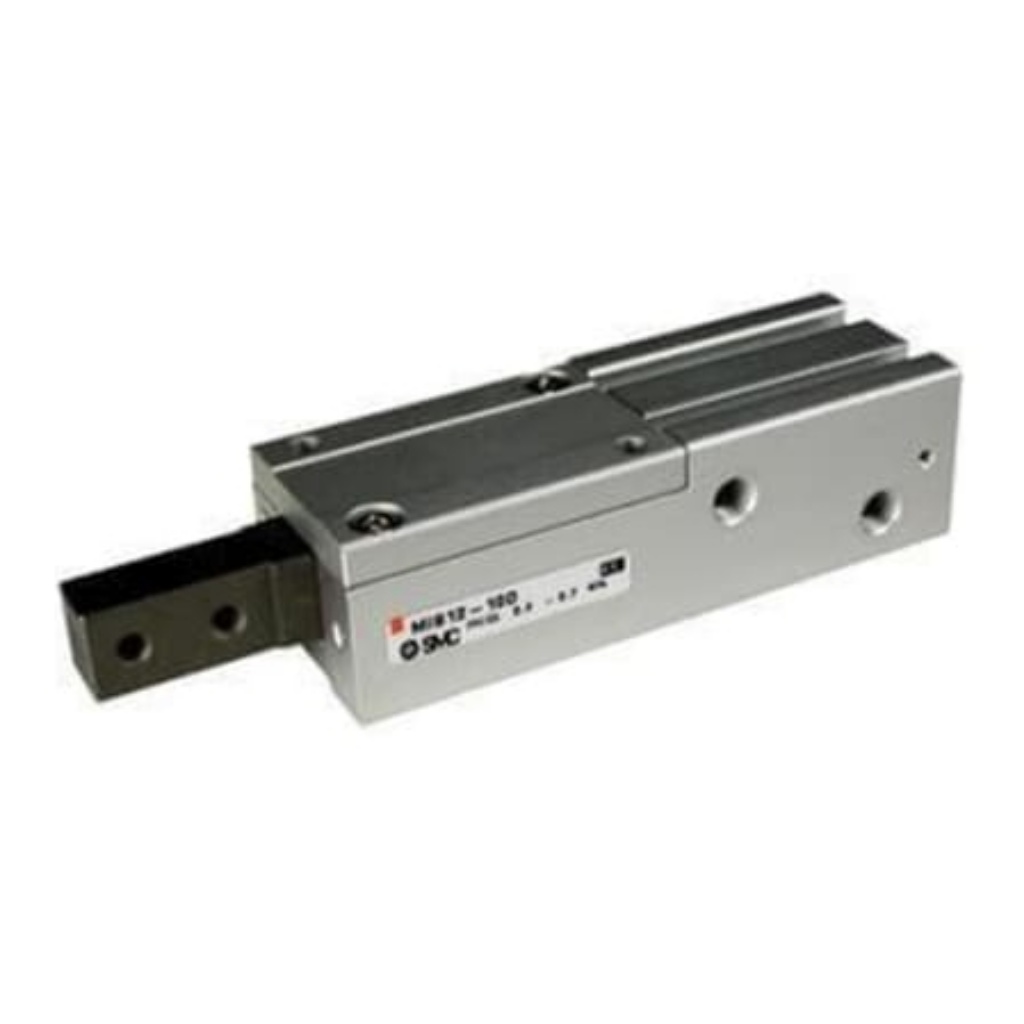

Picture of Clamping Actuator , SMC, MIS8-20D

Clamping Actuator , SMC, MIS8-20D

The SMC MIS series is one type finger escapement which is ideal for separating and feeding individual parts from vibratory feeders, magazines, and hoppers. It provides reliable performance of the escapement by interlocking the two piston rods with a cam mechanism and control of air passage to the pistons.

Flexibility in mounting the finger options
Floating mechanism
Auto switch capable
Mounting is possible from 2 directions
Manufacturer: SMC
SKU: MIS8-20D
$432.14
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Clamp Stroke20mm
Bore8mm
Maximum Operating Pressure7 bar
Manufacturer SeriesMIS
