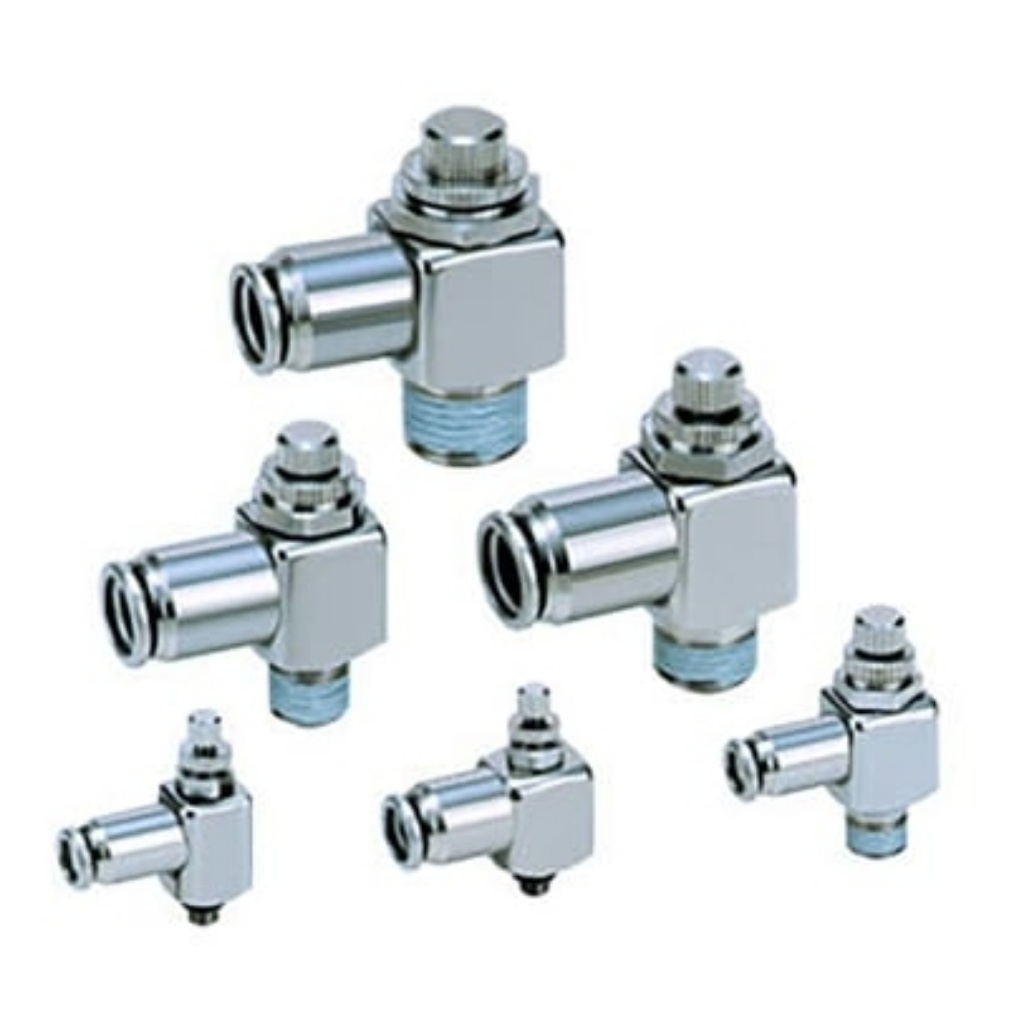

Picture of ASG Series Tube Speed Controller, 6mm Tube Inlet Port, SMC, ASG221F-M5-06

ASG Series Tube Speed Controller, 6mm Tube Inlet Port, SMC, ASG221F-M5-06

Elbow design which allows the rotation of the tube connection port to suit installation to air cylinders.
Five body sizes to suit cylinder bore diameters from Ø6 mm up to Ø100 mm.
All SUS construction.
Seal material: Special FKM for external seals.
Option for meter-out or meter-in type control.
One-touch fitting based upon the successful KQG design.
The port thread has sealant (except M5 type), to save installation time and reduce the possibility of leakage.
Manufacturer: SMC
SKU: ASG221F-M5-06
$131.55
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
TypeSpeed Controller
Inlet Port TypeTube
Tube Inlet Port6mm
Manufacturer SeriesASG
Outlet Port TypeThreaded
Minimum Outlet Pressure0.1MPa
Maximum Outlet Pressure1MPa
Threaded Outlet Thread StandardMetric
Threaded Outlet Thread GenderMale
Body MaterialStainless Steel
Proof Pressure1.5MPa
