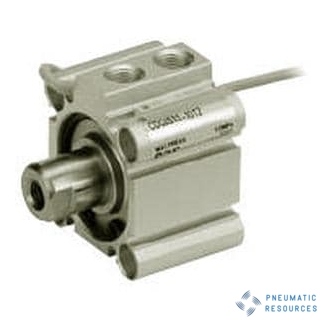

Picture of SMC CDQ2B20-50DMZ-A73S Cylinder, CQ2-Z Compact Cylinder

SMC CDQ2B20-50DMZ-A73S Cylinder, CQ2-Z Compact Cylinder

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.
Manufacturer: SMC
SKU: CDQ2B20-50DMZ-A73S
Please send us an email to enquire about this item.
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.

  • Single acting, single rod, compact cylinder
  • Bore sizes *: 12, 16, 20, 25, 32, 40, 50
  • Standard stroke range *: 5, 10, 20
  • Port threads: M *; Rc, NPT or G *
  • Auto switch capable

Technical Specifications

SMC Part DescriptionCylinder
SMC Products LineActuator
SMC Class Description20MM CQ2-Z DBL-Act Auto-SW
Weight0.27 kg
SMC Family CodeHE

Helpful links

Ordering Guide for CDQ2B20-50DMZ-A73S
Series Catalog for CDQ2B20-50DMZ-A73S
SMC CAD Drawings for CDQ2B20-50DMZ-A73S
SMC Part Builder for CDQ2B20-50DMZ-A73S
