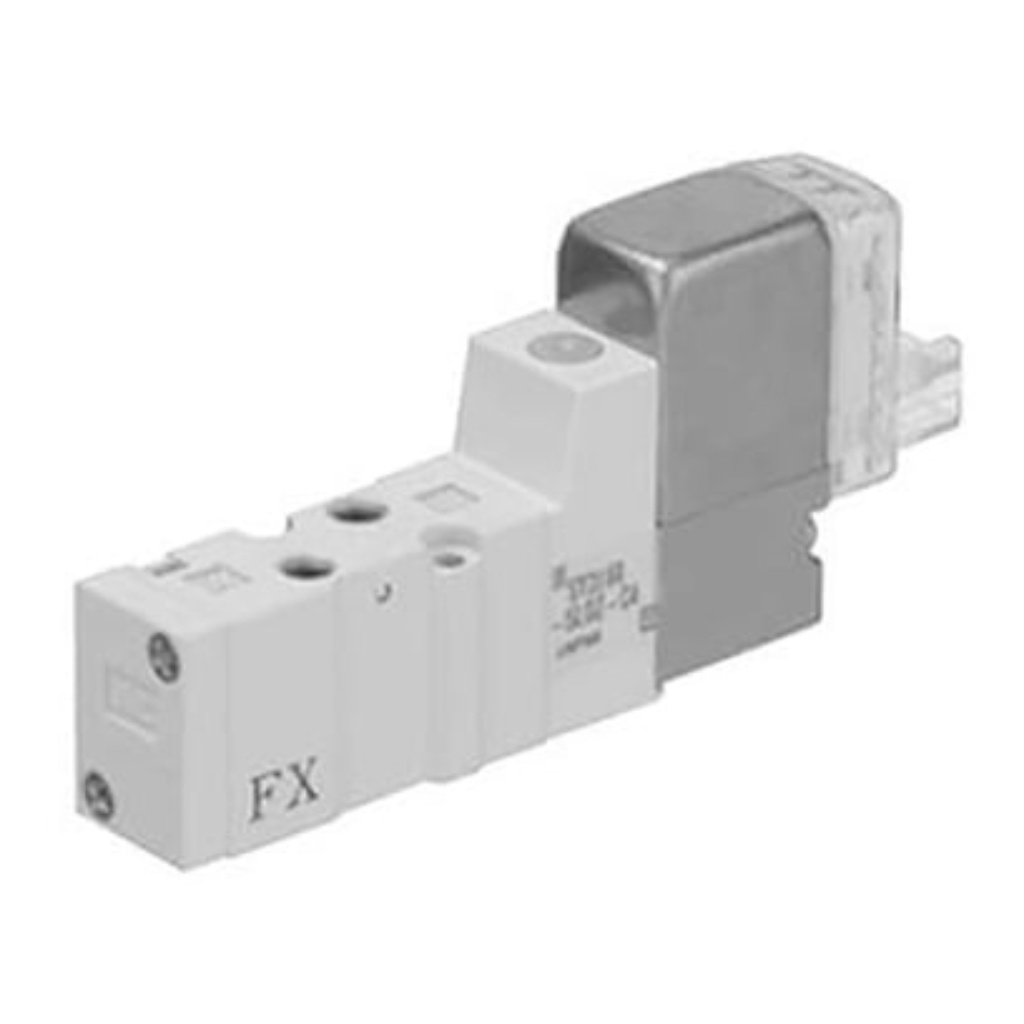

Picture of 5/2 Solenoid Pilot Valve - Solenoid SYJ3000 Series, SMC, SYJ3233-5LOZ-Q

5/2 Solenoid Pilot Valve - Solenoid SYJ3000 Series, SMC, SYJ3233-5LOZ-Q

Fluid: air
Operating pressure range: 0.15 - 0.7MPa
Effective area mm 2 (Cv): 5 port body ported 0.9 (0.05)
5 port base mounted w/sub-plate 1.8 (0.1)
Coil rated voltage: 3, 5, 6, 12, 24VDC,
100, 110, 200, 220VAC
Ambient & fluid temp: max. 50°C
Manufacturer: SMC
SKU: SYJ3233-5LOZ-Q
$183.37
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function5/2
Actuation TypeSolenoid
Manufacturer SeriesSYJ3000
Solenoid FittedYes
Number of Ports5
Body MaterialDie Cast Zinc
Maximum Flow Rate122L/min
Solenoid Power Consumption0.35W
Minimum Operating Pressure0.1MPa
Number of Positions2
Maximum Operating Temperature+50°C
Minimum Operating Temperature-10°C
Configuration5/2
Maximum Operating Pressure0.7 MPa
Thread StandardRc
