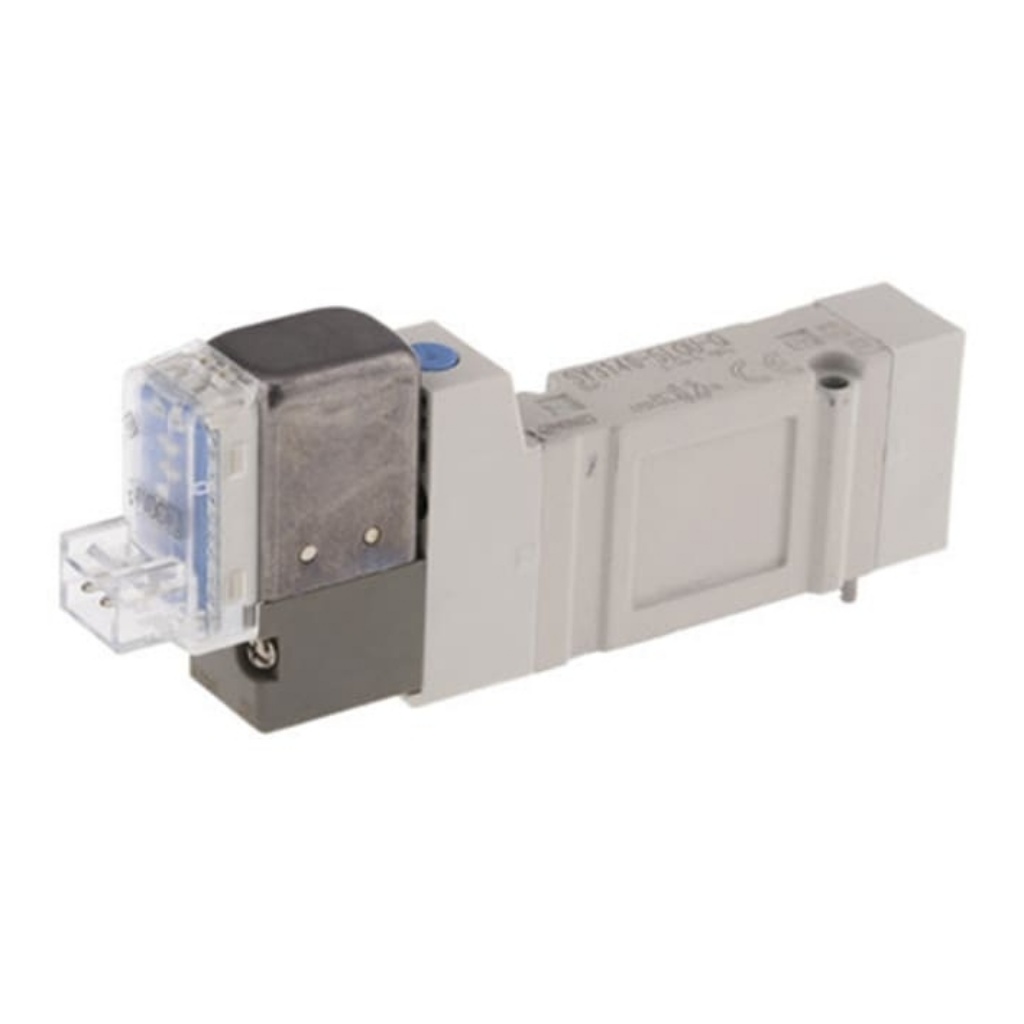

5/2 Pneumatic Solenoid Valve - Solenoid/Pilot M5 x 0.8 SY3000 Series 24V dc, SMC, SY3120-5LOZ-M5-Q

SY3000 Valves

SY3000 solenoid valves are extremely compact and offer high flow rates. They operate with reduced power consumption and have a power saving circuit to ensure energy efficiency. The valve cover also uses stainless steel and is therefore stronger.

SMC SY Series
Manufacturer: SMC
SKU: SY3120-5LOZ-M5-Q
$133.35
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function5/2
Connection Port ThreadM5 x 0.8
Actuation TypeSolenoid/Pilot
Manufacturer SeriesSY3000
Mounting StylePlug In
Solenoid Voltage24V dc
Number of Ports5
Body MaterialDie Cast Zinc
Solenoid Power Consumption0.35W
Minimum Operating Pressure0.15MPa
Maximum Operating Pressure0.7 Mpa
Number of Positions2
Configuration2-Position Single
Maximum Operating Temperature+50°C
Minimum Operating Temperature-10
Special FeaturesA built-in strainer in the pilot valve prevents trouble caused by foreign matter, By using H-NBR seal material for the main valve and seals Ozone resistance has been improved side top and bottom port/pipe directions are available to allow flexible installation, The SY is available in body ported or base mounted styles and can be used individually or manifold mounted
Thread StandardMetric
