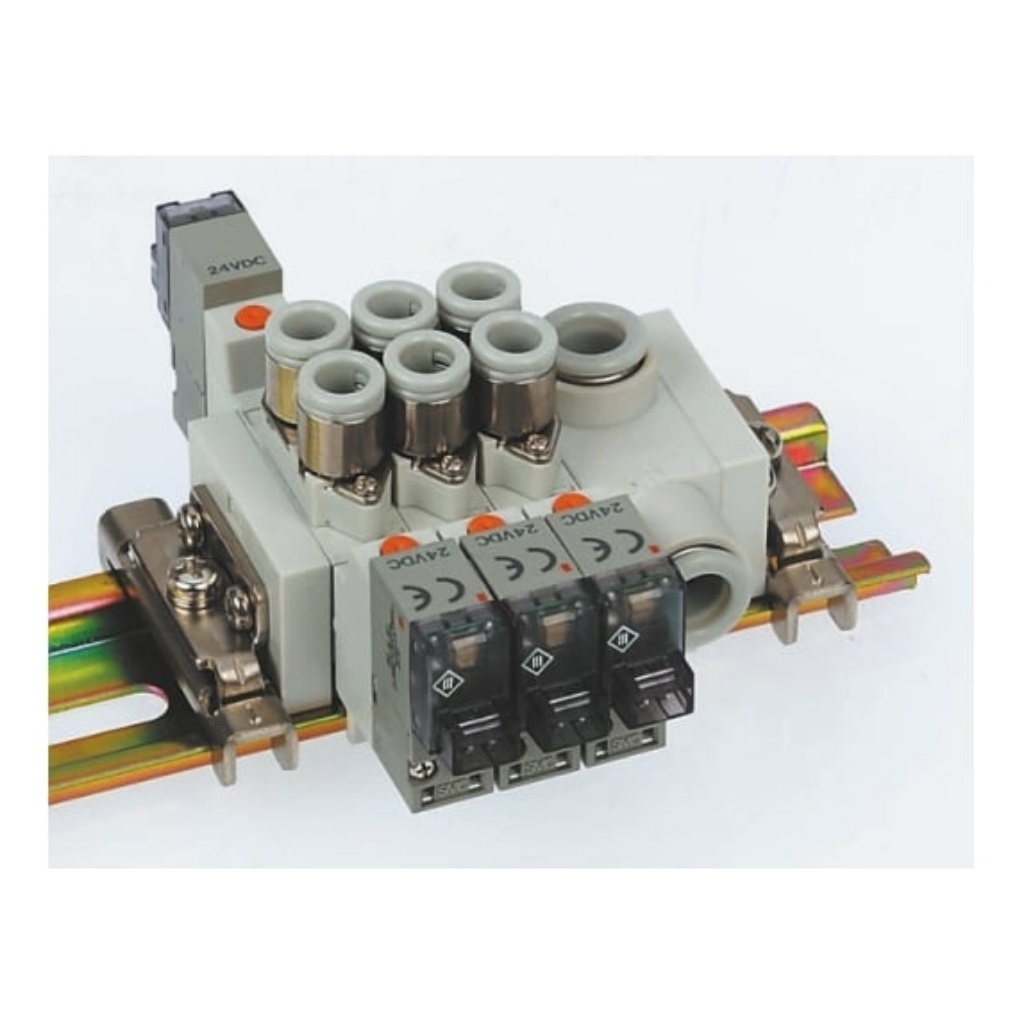

Picture of 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/8 SY5000 Series 24V dc, SMC, SY5260-5YO-01F-Q

5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/8 SY5000 Series 24V dc, SMC, SY5260-5YO-01F-Q

SY Z Series Cassette Valves

Compact, lightweight body ported design
Easily configured and expandable valve system
Valves supplied complete with sealing discs
High flow, fast response
Standard, DIN rail mounting
24Vdc solenoid voltage
Low power consumption

Note

'L' type connector must be ordered separately

SMC SY Z Series

A range of modular DIN rail mounted solenoid operated valves and accessories for pneumatic circuits. All valves operate using compressed filtered air (lubricated or non-lubricated) and have an operating temperature range of -10 to +50°C.
Manufacturer: SMC
SKU: SY5260-5YO-01F-Q
$205.65
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function5/2
Connection Port ThreadG 1/8
Actuation TypeSolenoid/Pilot
Manufacturer SeriesSY5000
Mounting StyleDIN Rail
Solenoid Voltage24V dc
Solenoid FittedYes
Number of Ports5/2
Body MaterialDie Cast Aluminium
Maximum Flow Rate559NL/min
Solenoid Power Consumption0.35W
Minimum Operating Pressure0.1MPa
Maximum Operating Pressure0.7 MPa
Maximum Operating Temperature+50°C
Thread Size1/8in
Minimum Operating Temperature-10°C
Thread StandardG
