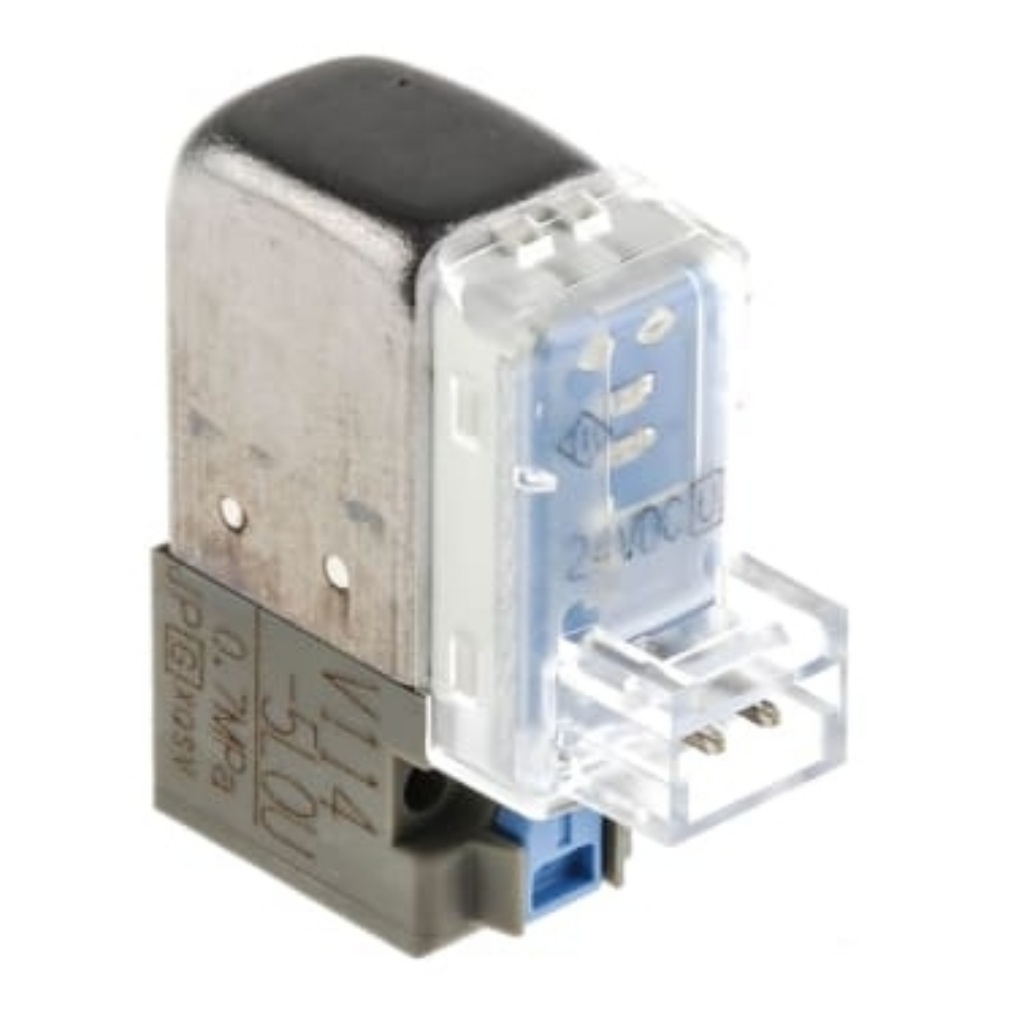

3/2 Pneumatic Solenoid Valve - Spring/Solenoid V100 Series 24V dc, SMC, V114-5LOU

SMC Solenoid Valve

The SMC V100 series 3-port solenoid valve has operating pressure ranging between 0MPa and 0.7MPa. This valve has normally closed actuation. Its solenoid voltage is 24VDC and is designed for applications requiring a compact, lightweight, high flow valve for piloting process valves or actuators. It has low power consumption with the standard version only using 0.35W and the low power version only requiring 0.1W, helping to reduce costs. Its maximum flow rate is 14.2L/min.

Features and Benefits

Indicator light and surge voltage suppressor
Manifold mount
Available without L-plug connector
Operating temperature ranging between -10°C and 50°C
Ultra-compact 3-port direct acting valve
