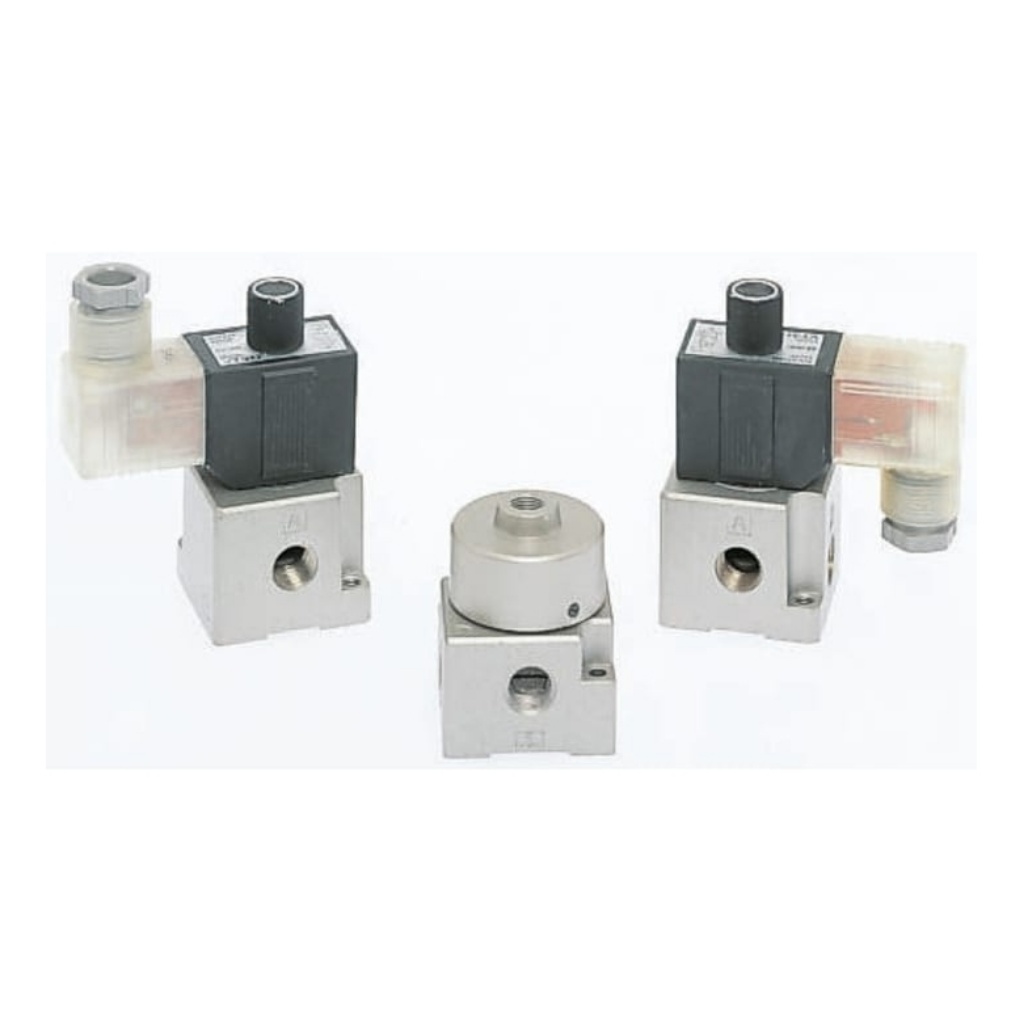

Picture of 3/2 Pneumatic Solenoid Valve - Spring/Solenoid Rc 1/4 VT307 Series 240V ac, SMC, VT307-7DZ-02

3/2 Pneumatic Solenoid Valve - Spring/Solenoid Rc 1/4 VT307 Series 240V ac, SMC, VT307-7DZ-02

3 Port Direct Operated Poppet Solenoid + Pilot Valves, VT317 Series

A selection of direct operated 3 port poppet type solenoid operated spring return valves. Selective porting can be provided from these valves for up to 6 different valve functions.

1/ 4 in ports, tapered threads
Standard DIN 43650 Electrical Connection
Push button manual override
Surge voltage protection
Coils may be orientated at 90° increments
Suitable for vacuum applications (9120857)
Manufacturer: SMC
SKU: VT307-7DZ-02
$172.66
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function3/2
Connection Port ThreadRc 1/4
Actuation TypeSpring/Solenoid
Manufacturer SeriesVT307
Mounting StyleStand-Alone
Solenoid Voltage240V ac
Solenoid FittedYes
Number of Ports3/2
Body MaterialDie Cast Aluminium
Maximum Flow Rate225.75NL/min
Solenoid Power Consumption12.7VA
Minimum Operating Pressure0MPa
Maximum Operating Pressure0.9 MPa
Minimum Operating Temperature0°C
Thread Size1/4in
Maximum Operating Temperature+50°C
Thread StandardRc
