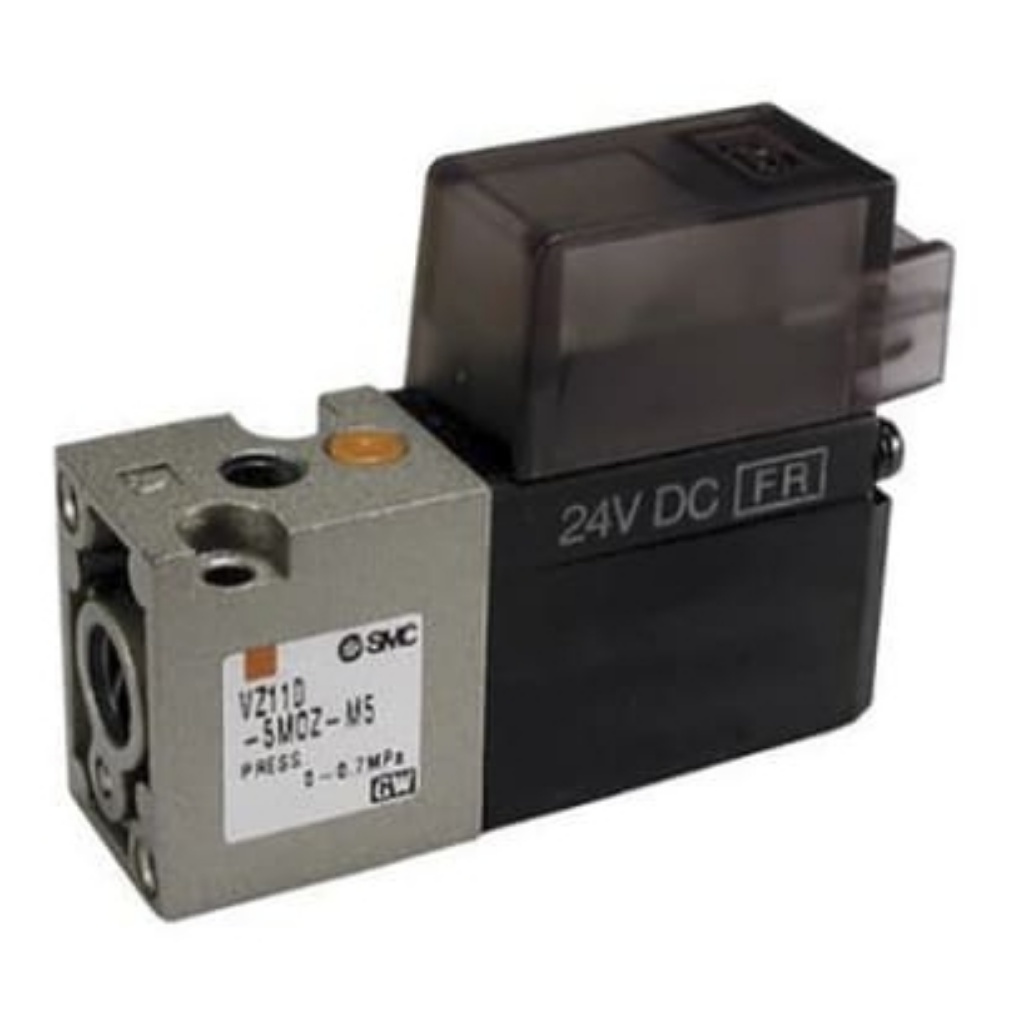

Picture of 3/2 Pneumatic Solenoid Valve - Spring/Solenoid Metric M5 VZ100 Series 24V dc, SMC, VZ110-5MOZ-M5-Q

3/2 Pneumatic Solenoid Valve - Spring/Solenoid Metric M5 VZ100 Series 24V dc, SMC, VZ110-5MOZ-M5-Q

M5, 1/ 8 in VZ Series Valves

SMC VZ series solenoid valves are a 3-port pneumatic control valve with rubber seals. The VZ series has a low power consumption enabling direct control via a PLC and a max response time of 15+ms. They can be mounted individually or with a manifold and feature a non-locking manual override.

Dust proof
Rubber seals

SMC SY & VZ Series

These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.
Manufacturer: SMC
SKU: VZ110-5MOZ-M5-Q
$100.91
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function3/2
Connection Port ThreadMetric M5
Actuation TypeSpring/Solenoid
Manufacturer SeriesVZ100
Mounting StyleBody Ported
Solenoid Voltage24V dc
Number of Ports3
Body MaterialDie Cast Zinc
Solenoid Power Consumption0.35W
Minimum Operating Pressure0bar
Maximum Operating Temperature+50°C
Minimum Operating Temperature-10
Maximum Operating Pressure0.7 Mpa
ConfigurationNormally Closed
Number of Positions2
Thread StandardMetric
