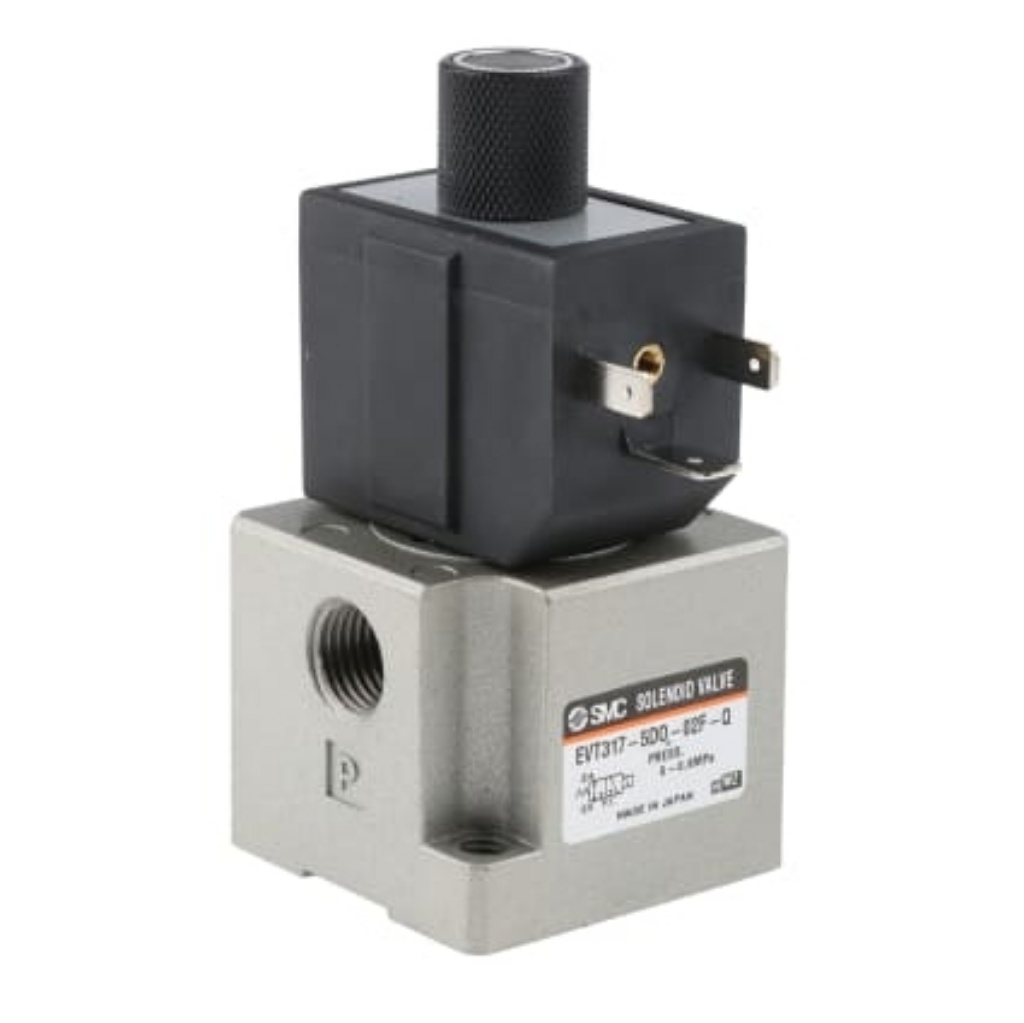

Picture of 3/2 Pneumatic Solenoid Valve - Spring/Solenoid G 1/4 VT317 Series 24V dc, SMC, EVT317-5DO-02F-Q
Picture of 3/2 Pneumatic Solenoid Valve - Spring/Solenoid G 1/4 VT317 Series 24V dc, SMC, EVT317-5DO-02F-Q
Picture of 3/2 Pneumatic Solenoid Valve - Spring/Solenoid G 1/4 VT317 Series 24V dc, SMC, EVT317-5DO-02F-Q

3/2 Pneumatic Solenoid Valve - Spring/Solenoid G 1/4 VT317 Series 24V dc, SMC, EVT317-5DO-02F-Q

SMC Solenoid Valve

The SMC VT317 series 3/2 ports direct operated poppet solenoid valve has a supply voltage of 24VDC. This solenoid-operated spring return valve has a 1/4in G port connection. This valve is suitable for use in vacuum applications. This valve has a standard DIN 43650 electrical connection without a connector.

Features and Benefits

Coils may be orientated at 90° increments
Maximum flow rate is 687.05NL/min
Operating pressure ranges between 0MPa and 0.9MPa
Operating temperature range between 0°C and 50°C
Push button manual override

Certifications

IP65 rated
Manufacturer: SMC
SKU: EVT317-5DO-02F-Q
$140.41
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function3/2
Connection Port ThreadG 1/4
Actuation TypeSpring/Solenoid
Manufacturer SeriesVT317
Mounting StyleStand-Alone
Solenoid Voltage24V dc
Solenoid FittedYes
Number of Ports3/2
Body MaterialDie Cast Aluminium
Maximum Flow Rate687.05NL/min
Solenoid Power Consumption6W
Minimum Operating Pressure0MPa
Maximum Operating Temperature+50°C
Minimum Operating Temperature0°C
Thread Size1/4in
Maximum Operating Pressure0.9 MPa
Thread StandardG
