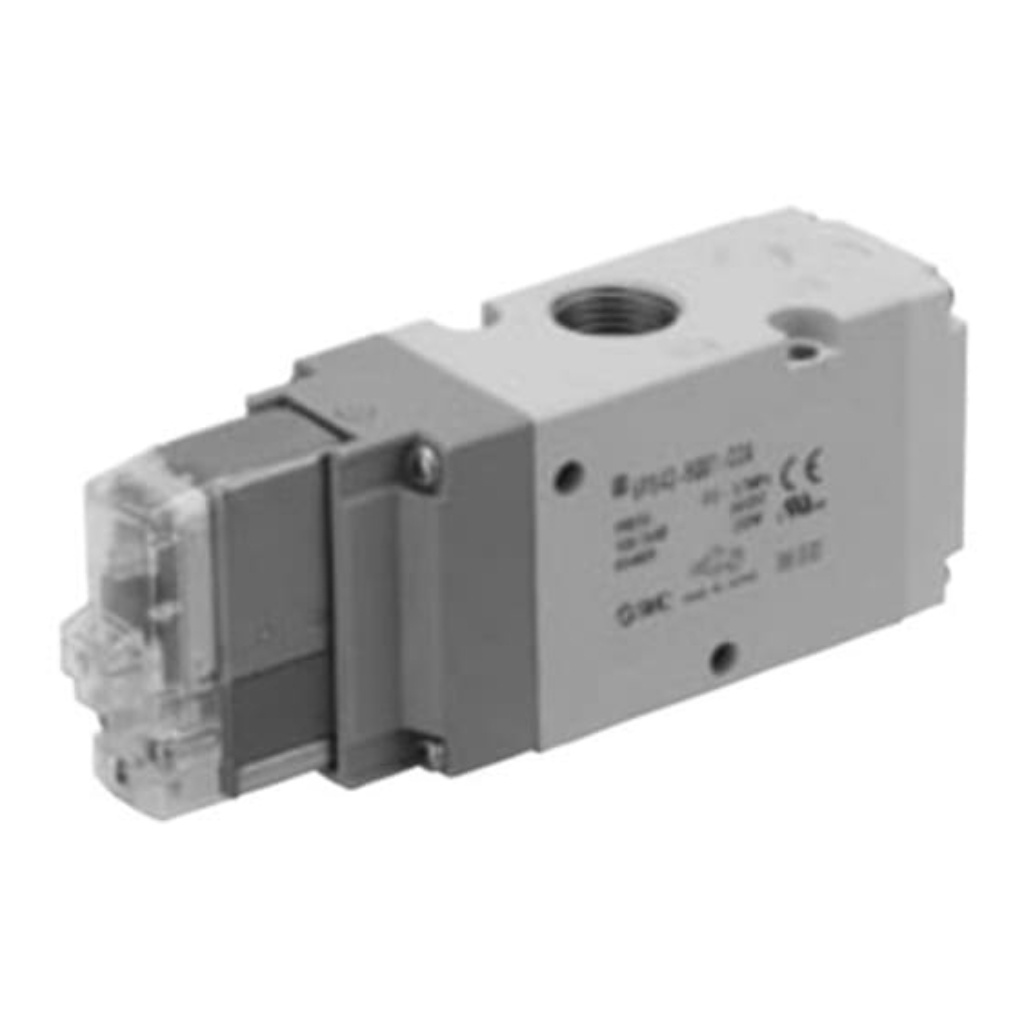

Picture of 3/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 3/8 VP300 Series 24V dc, SMC, VP542-5YO1-03FA

3/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 3/8 VP300 Series 24V dc, SMC, VP542-5YO1-03FA

VP500 Solenoid Valve

The VP500 is a body ported poppet type solenoid valve with a high flow capacity and low powers consumption. Suitable for use as a divider or selector valve and with a life expectancy of over 50 million cycles. The VP500 is also fitted with a strainer to prevent contamination entering the valve from the pilot.

Unrestricted mounting orientation
Suitable for vacuum applications to -100kPa
Manual Override
Normally closed
External pilot (0.2 to 0.7 MPa)

SMC VP Series
Manufacturer: SMC
SKU: VP542-5YO1-03FA
$229.04
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function3/2
Connection Port ThreadG 3/8
Actuation TypeSolenoid/Pilot
Manufacturer SeriesVP300
Mounting StyleBody Ported
Solenoid Voltage24V dc
Number of Ports3
Solenoid Power Consumption1.5W
Minimum Operating Pressure0.2MPa
Number of Positions2
Maximum Operating Pressure0.7 Mpa
Minimum Operating Temperature-10
Thread Size3/8in
Thread StandardG
