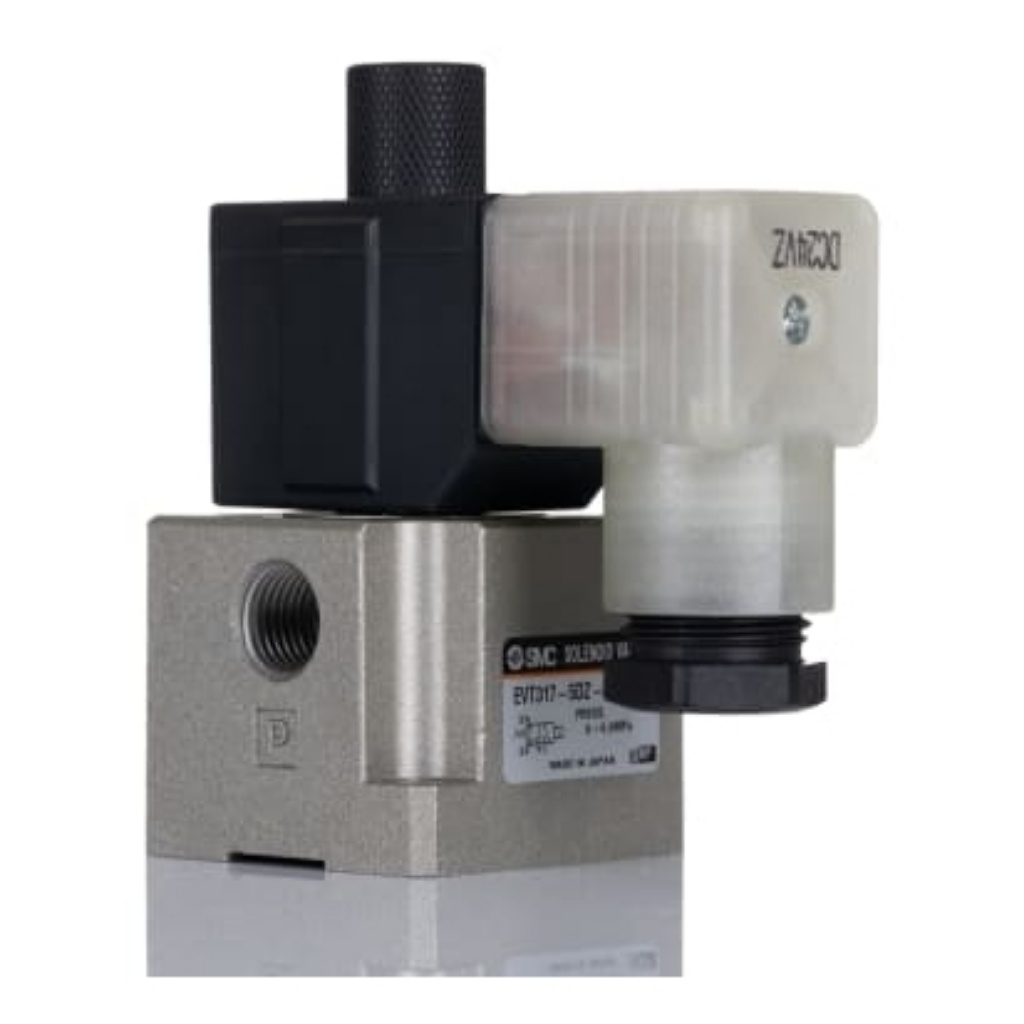

Picture of 3/2 Pneumatic Control Valve - Spring/Solenoid G 1/4 VT317 Series 24V dc, SMC, EVT317-5DZ-02F-Q
Picture of 3/2 Pneumatic Control Valve - Spring/Solenoid G 1/4 VT317 Series 24V dc, SMC, EVT317-5DZ-02F-Q
Picture of 3/2 Pneumatic Control Valve - Spring/Solenoid G 1/4 VT317 Series 24V dc, SMC, EVT317-5DZ-02F-Q
Picture of 3/2 Pneumatic Control Valve - Spring/Solenoid G 1/4 VT317 Series 24V dc, SMC, EVT317-5DZ-02F-Q

3/2 Pneumatic Control Valve - Spring/Solenoid G 1/4 VT317 Series 24V dc, SMC, EVT317-5DZ-02F-Q

3 Port Direct Operated Poppet Solenoid + Pilot Valves, VT317 Series

A selection of direct operated 3 port poppet type solenoid operated spring return valves. Selective porting can be provided from these valves for up to 6 different valve functions.

1/ 4 in ports, tapered threads
Standard DIN 43650 Electrical Connection
Push button manual override
Surge voltage protection
Coils may be orientated at 90° increments
Suitable for vacuum applications (9120857)

Note

Includes electrical connectors and indicator
Manufacturer: SMC
SKU: EVT317-5DZ-02F-Q
$195.61
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function3/2
Connection Port ThreadG 1/4
Actuation TypeSpring/Solenoid
Manufacturer SeriesVT317
Mounting StyleStand-Alone
Solenoid Voltage24V dc
Solenoid FittedYes
Number of Ports3/2
Body MaterialDie Cast Aluminium
Maximum Flow Rate687.05NL/min
Solenoid Power Consumption6.3W
Minimum Operating Pressure0MPa
Minimum Operating Temperature0°C
Maximum Operating Pressure0.9 MPa
Thread Size1/4in
Maximum Operating Temperature+50°C
Thread StandardG
