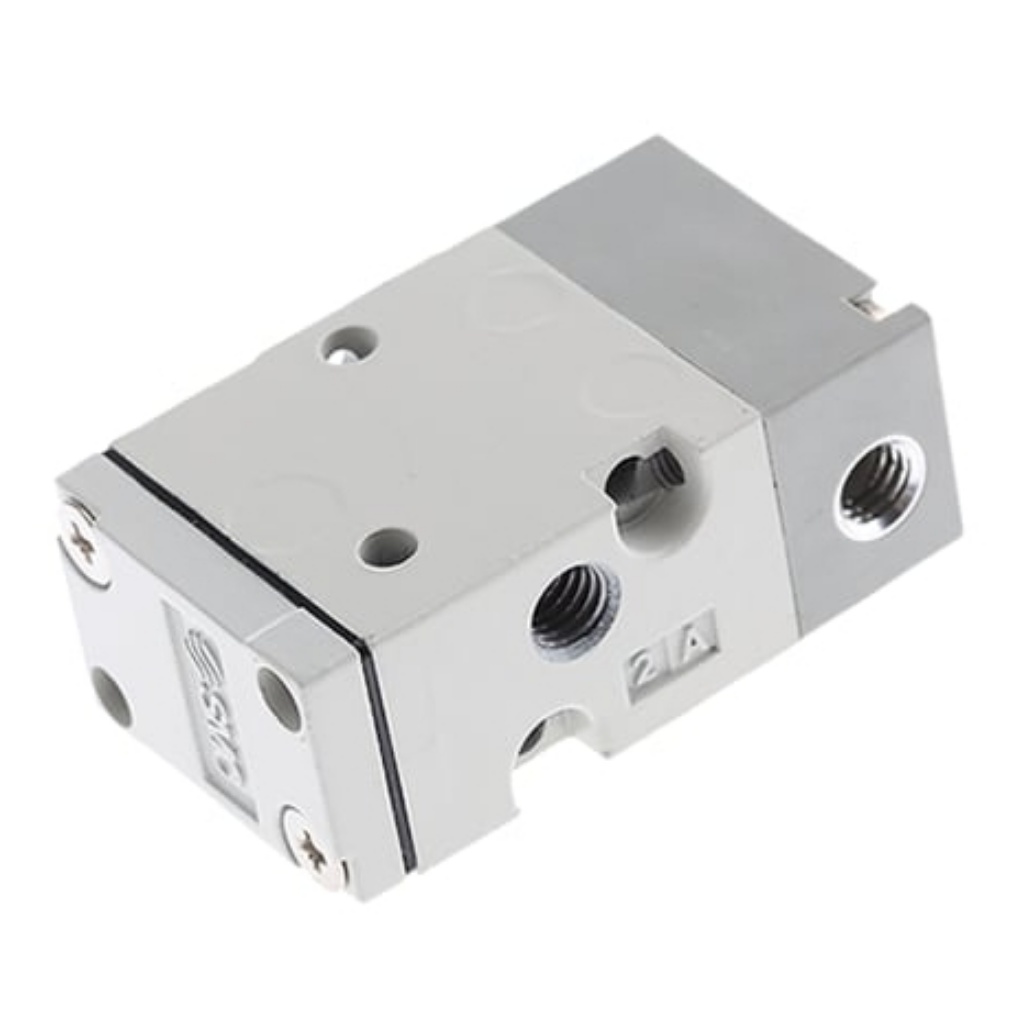

Picture of 3/2 Pneumatic Control Valve - Pilot/Spring Metric M5 x 0.8 SYJA500 Series, SMC, SYJA512-M5
Picture of 3/2 Pneumatic Control Valve - Pilot/Spring Metric M5 x 0.8 SYJA500 Series, SMC, SYJA512-M5
Picture of 3/2 Pneumatic Control Valve - Pilot/Spring Metric M5 x 0.8 SYJA500 Series, SMC, SYJA512-M5

3/2 Pneumatic Control Valve - Pilot/Spring Metric M5 x 0.8 SYJA500 Series, SMC, SYJA512-M5

M5 SYJ500/5000 Valves

The SYJ series of valves have low power consumption and therefore decreased engineering costs. Their space saving design means that the SYJ valves can be individually mounted onto sub plates or configured onto base mounted manifolds. These SYJ500 & 5000 valves have a pilot exhaust and have a copper free design.

Copper free design
Low power consumption
Space efficient

SMC SYJ & VF Series

Low power consumption enables direct operation by PLC. They have a non locking manual override. Operating temperature: -10 to +50°C.
Manufacturer: SMC
SKU: SYJA512-M5
$100.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Function3/2
Connection Port ThreadMetric M5 x 0.8
Actuation TypePilot/Spring
Manufacturer SeriesSYJA500
Mounting StyleStand-Alone
Number of Ports3/2
Maximum Flow Rate196.3NL/min
Minimum Operating Pressure0.15MPa
Maximum Operating Pressure0.7 MPa
Minimum Operating Temperature-10°C
Maximum Operating Temperature+50°C
Thread StandardMetric
