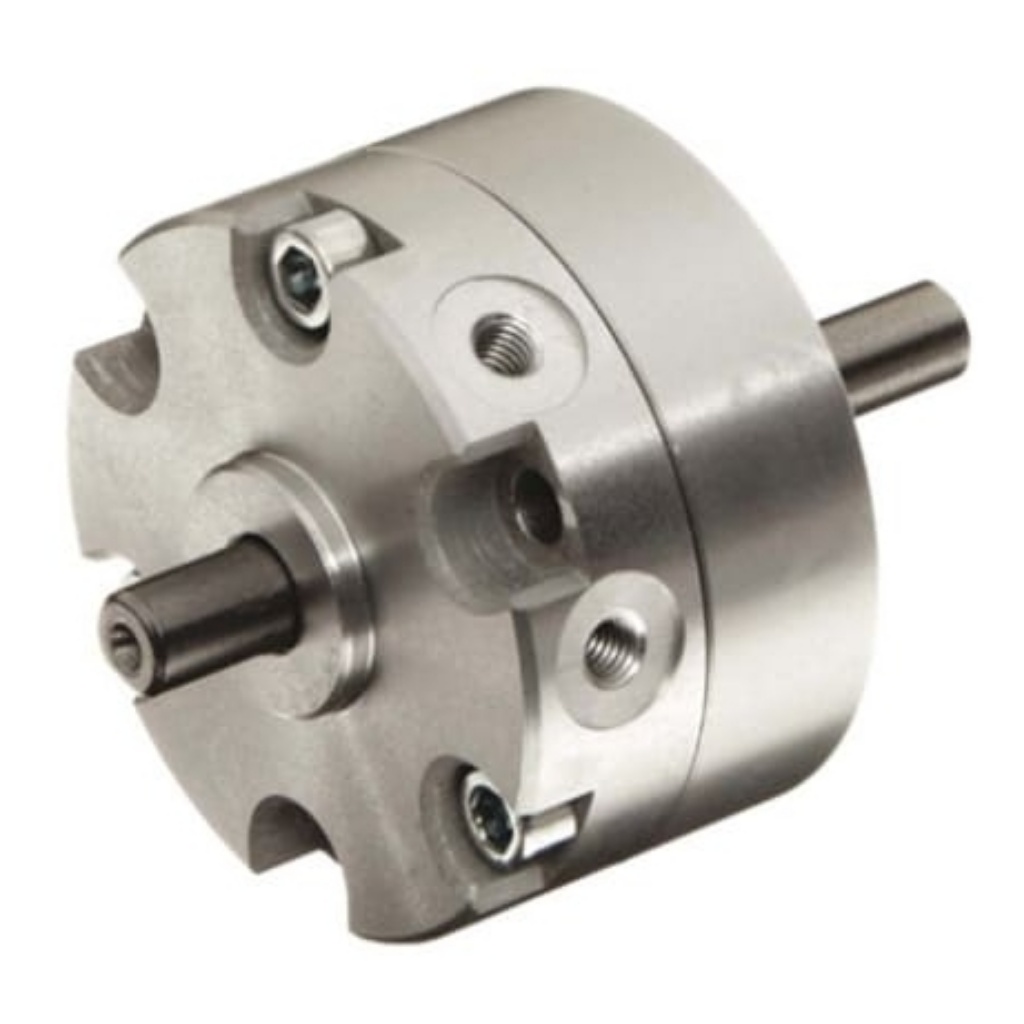

Picture of 0.7 MPa Single Action Pneumatic Rotary Actuator, 270° Rotary Angle, 20mm Bore, SMC, CDRB2BW20-270SZ

0.7 MPa Single Action Pneumatic Rotary Actuator, 270° Rotary Angle, 20mm Bore, SMC, CDRB2BW20-270SZ

Vane Type Rotary Actuators CRB2-Z

SMC have upgraded their CRB2 series of rotary actuators by adding the CRB2-Z to the range. These new actuators feature a double shaft and parallel mounted ports improving piping and ease of installation.

Direct mounting
Autoswitch can be fixed in any position
Side ported
Rotating angle of 90°,180° or 270°
Double shaft design
Available with angle adjustor

Vane Types 10-80mm Diameter

A range of compact, lightweight rotary actuators, ideal for turning small loads in confined spaces.
Manufacturer: SMC
SKU: CDRB2BW20-270SZ
$407.34
Please select the address you want to ship to
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
FeatureValue
Rotary Angle270°
ActionSingle
Bore20mm
Force at 7 bar20 (Thrust) N, 25 (Radial) N
Maximum Operating Pressure0.7 MPa
Absolute Maximum Pressure1.05MPa
Cushioning TypeAir
Port ConnectionM5 x 0.8
Weight147g
Size TypeStandard
